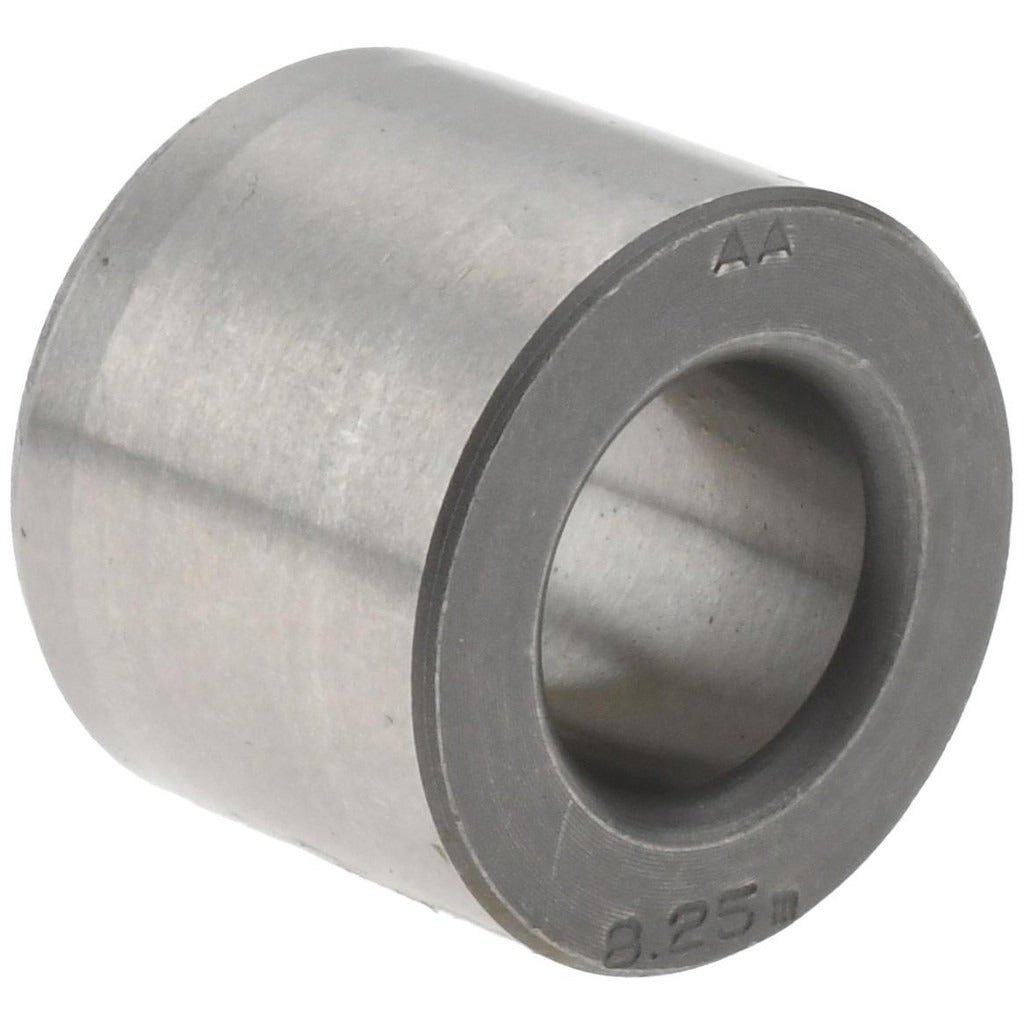

Boneham AM00000696 Press Fit Headless Drill Bushing Pm

Product Description

The BONEHAM AM00000696 is a press fit headless drill bushing manufactured to PM industry code standards. It is used to guide drill bits and other cutting tools with precision during machining and fabrication operations. Constructed from steel, this bushing is designed for permanent or semi-permanent press fit installation into a jig or fixture plate. The inside diameter measures 8.25 inches, the body outside diameter is 15.00 millimeters, and the overall bushing length is 12.00 millimeters. Machinists, toolmakers, and fixture builders install this type of component to maintain hole location accuracy across repeated drilling cycles.

This bushing is suited for use in drill jig fixtures in production and job shop machining environments. It is appropriate for both light and moderate-duty drilling applications where a headless, flush-mount profile is required. The PM code designation identifies this as a standard press fit style within the drill bushing industry coding system. Installation does not require a locking mechanism, making it well suited for fixed, non-renewable setups where the bushing remains in place for the life of the fixture.

Key Features

• Press fit installation method for secure, permanent seating in jig plates
• PM industry code designation for standardized sizing and interchangeability
• Steel construction for durability under repeated tooling loads
• Headless design provides a flush profile that does not protrude above the fixture surface
• Non-renewable configuration suited for long-run or dedicated fixture applications

Compatibility

Designed as an OEM-style replacement or direct-fit component for drill jig fixtures requiring a PM-code press fit headless drill bushing with an 8.25-inch inside diameter.

Installation Notes

Installation is typically performed by a machinist or toolmaker using an arbor press or hydraulic press to seat the bushing flush into the fixture plate bore. Ensure the receiving bore is clean and dimensioned to the appropriate interference fit tolerance before pressing. Do not use impact tools to drive the bushing, as this can cause misalignment or damage to the bore. Verify bushing seating depth and concentricity before placing the fixture into service.
