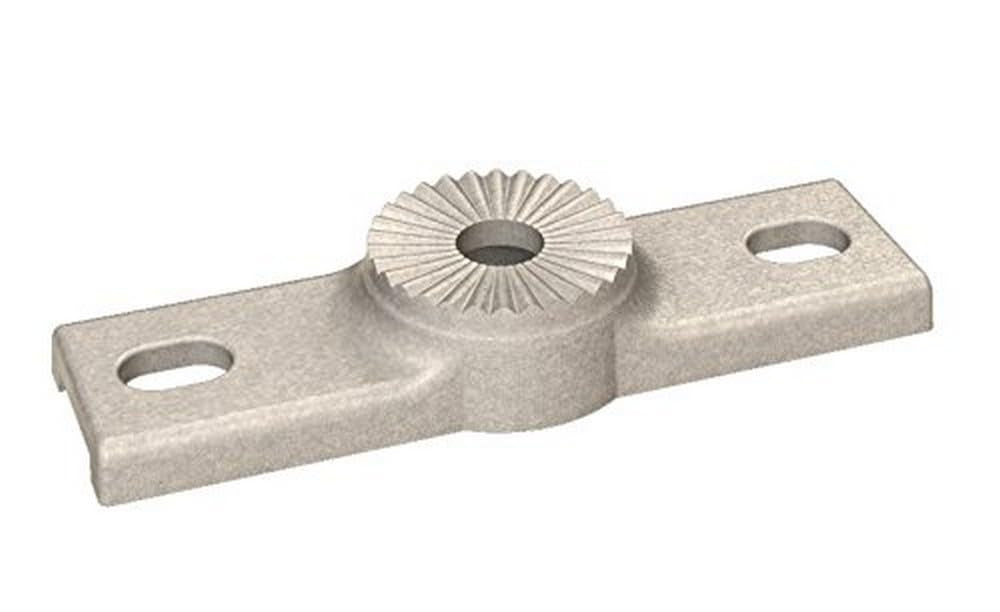

Bon Tool 12-349 Bottom Bracket Locking All Angle

Product Description

The BON TOOL 12-349 is a replacement bottom bracket designed for use with BON TOOL locking angle bracket assemblies. This component serves as the lower mounting piece in multi-part bracket systems, allowing the assembly to lock into any desired angular position and hold it securely. It is used in masonry, tile, and construction layout applications where precise angle positioning is required. Installers working with the BON TOOL Locking All Angle Bracket or Double Locking All Angle Bracket systems rely on this bottom bracket to complete or restore full bracket function. The part measures approximately 0.98 inches x 0.98 inches x 0.98 inches and weighs 0.25 pounds.

This bottom bracket fits into residential and commercial construction workflows where BON TOOL angle bracket assemblies are part of the layout or forming setup. It is intended for use specifically with the BON TOOL Locking All Angle Bracket (12-739) and the BON TOOL Double Locking All Angle Bracket (22-600). Tile setters, masons, and general contractors who work with these bracket systems will find this a direct service replacement for the bottom component of those assemblies.

Key Features

• Bottom-only component for BON TOOL locking angle bracket systems
• Locks to any desired angular position for flexible layout work
• Compatible with Locking All Angle Bracket 12-739 and Double Locking All Angle Bracket 22-600
• Compact cube profile at 0.98 inches x 0.98 inches x 0.98 inches
• Lightweight at 0.25 pounds for easy handling on the job

Compatibility

Designed for use with the BON TOOL Locking All Angle Bracket (12-739) and the BON TOOL Double Locking All Angle Bracket (22-600) as the bottom bracket component of those assemblies.

Installation Notes

This bracket is typically installed by tile setters, masons, or construction professionals as part of a BON TOOL angle bracket assembly. Before servicing or replacing bracket components, ensure the surrounding work area is stable and the existing assembly is fully disengaged. Follow the bracket assembly instructions provided with the 12-739 or 22-600 system to ensure proper seating and locking function of the bottom bracket.
