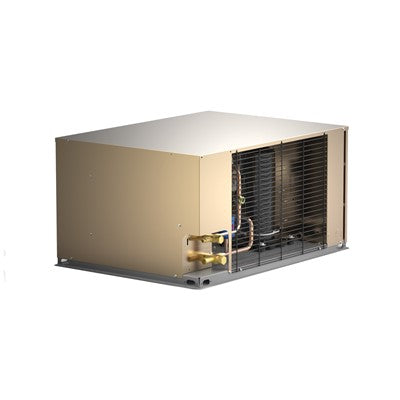

Bohn LCH0025MBACZ-A0000 Air-Cooled Condensing Unit

Product Description

The Bohn LCH0025MBACZ-A0000 is an air-cooled condensing unit designed for flexibility and serviceability. This unit is ideal for medium temperature applications, such as coolers. It features a scroll compressor that enhances efficiency and reliability. The piping connections are externally mounted, which simplifies installation and maintenance.

• Suitable for medium temperature applications
• Scroll compressor included
• Energy efficient with R-404A refrigerant

Product Highlights

This unit is engineered for energy efficiency and complies with AWEF regulations. Its design allows for easy access to components via removable cabinets and is built with a microchannel coil for optimal performance.

Product Information

Standard Information

• Brand: Bohn
• MPN: LCH0025MBACZ-A0000

Technical Specifications

• Product Type: Air-Cooled Condensing Unit
• Product Category: Condensing Units and Packaged Systems
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Voltage: 208-230/1/60
• Condenser Coil Type: Microchannel Coil
• Capacity: 22,860 BTU/H
• Height: 19.75 inches
• Depth: 28.25 inches
• Width: 39.125 inches
• Weight: 230 lbs
• Refrigerant: R-404A
• Sound Level: 63 dBA
