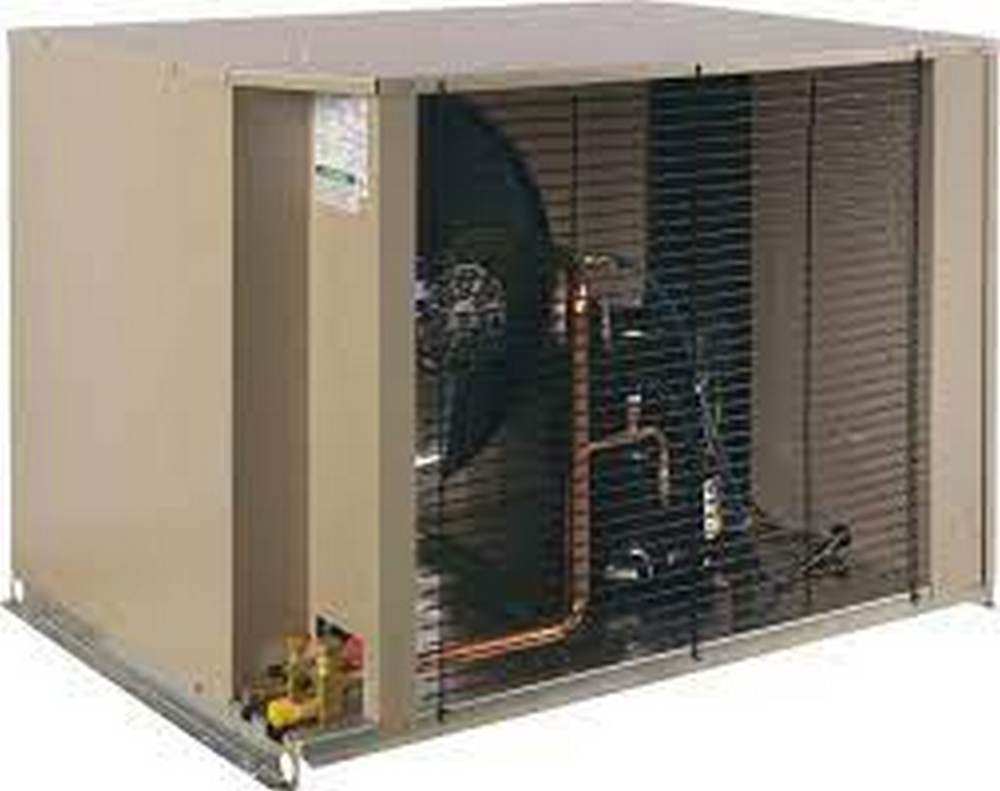

Bohn LCH0008MBACZ-A0000 Air-Cooled Condensing Unit

Product Description

The Bohn LCH0008MBACZ-A0000 is an air-cooled condensing unit for outdoor use in medium temperature applications. It includes a Copeland Scroll compressor and works with refrigerants R-404A and R-507A. This unit has externally mounted piping and removable cabinets for easy service access.

• Utilizes a Copeland Scroll compressor
• Designed for medium temperature applications
• Includes a receiver

Product Highlights

This unit meets minimum AWEF requirements and is designed for efficiency and reliability in various commercial settings.

Product Information

Standard Information

• Brand: Bohn
• Product Type: Air-Cooled Condensing Unit

Technical Specifications

• MPN: LCH0008MBACZ-A0000
• Application: Medium Temperature
• Compressor Type: Scroll
• Compressor Model Number: ZB07KAE-PFV
• Horsepower: 3/4
• Input Voltage: 208-230/1/60
• Refrigerant: R-404A
• Capacity BTUH: 8,980
• Width: 24.625 inches
• Depth: 28.25 inches
• Height: 19.75 inches
• Weight: 168 lbs
• Receiver Capacity: 9 lbs
• Connection Liquid: 3/8 inches
• Connection Suction: 5/8 inches
• MCA: 15 Amps
• Compressor RLA: 5.64
• Compressor LRA: 48
• Fan Motor Qty: 1
• Fan Motor Fla: 0.5
• Defrost Amps: 15
• MOPD: 15
• Evap Fan Amps: 5
• Defrost Heater Amps: 15
• Ambient Temperature: 95°F
• Suction Temperature: 25°F
• Sound Data: 61 dba
