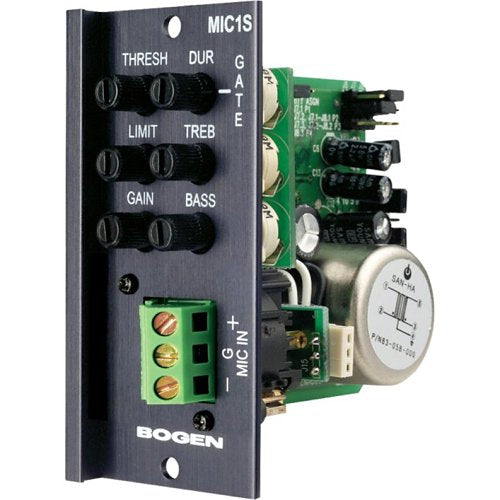

BOGEN MIC1S Microphone Transformer-Balanced Input Module Screw Terminal

Product Description

The Bogen MIC1S is a high-performance, transformer-balanced microphone input module with a screw terminal designed for dynamic and condenser microphones. It provides robust interfacing capabilities and ensures clear audio transmission with a variety of controls for audio optimization.

• Transformer-isolated input for minimal interference.
• Built-in 24V DC phantom power for condenser mics.
• Flexible gain adjustments ranging from 28 dB to 62 dB.

Product Highlights

This module features an adjustable gain control, and in-built limiter to manage the output levels effectively. Its priority level settings offer versatile integration into multiple audio setups. The VOX/gating circuitry and bass/treble adjustments further fine-tune the audio output for professional applications.

Product Information

Standard Information

• Brand: Bogen
• MPN: MIC1S
• Color: Black

Technical Specifications

• Gain Adjustment: 28 dB to 62 dB
• Phantom Power: 24V DC
• Priority Levels: 4
• Connectivity: Screw terminal
• Dimensions: Depth: 3.5 inches, Width: 1.4 inches, Height: 3.1 inches
