Bmi 35005 3/4 inch coupling fitting package quantities

Product Description

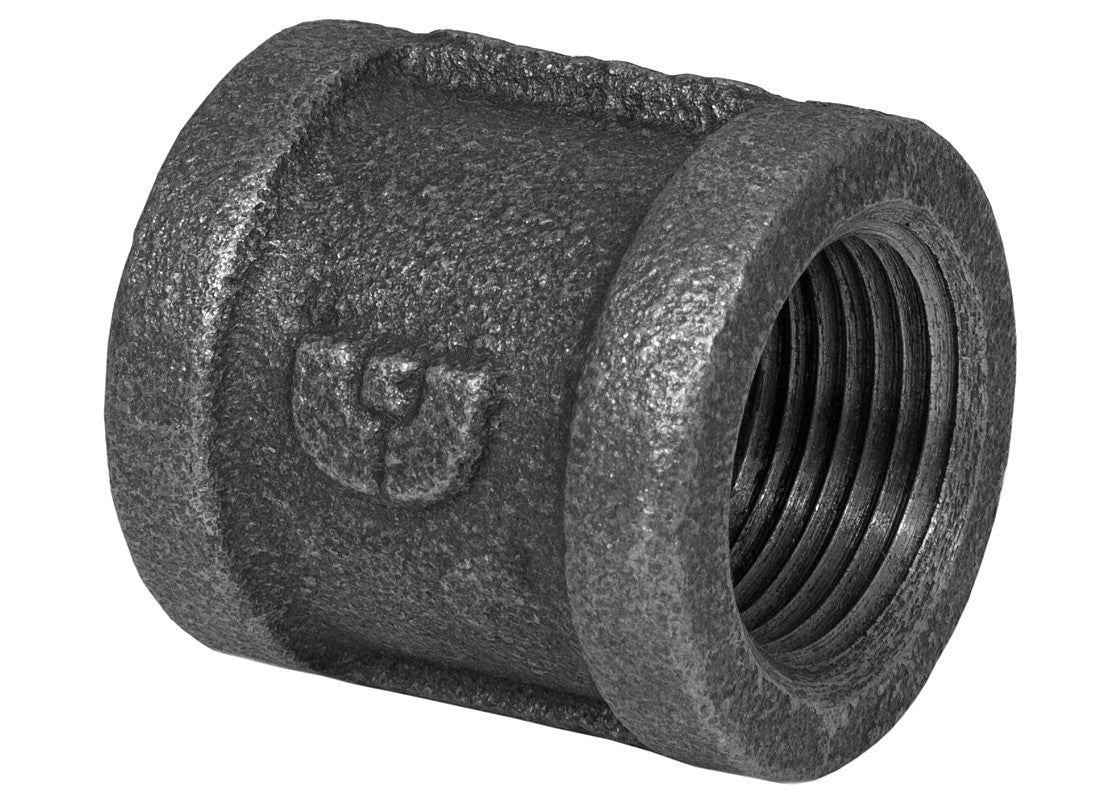

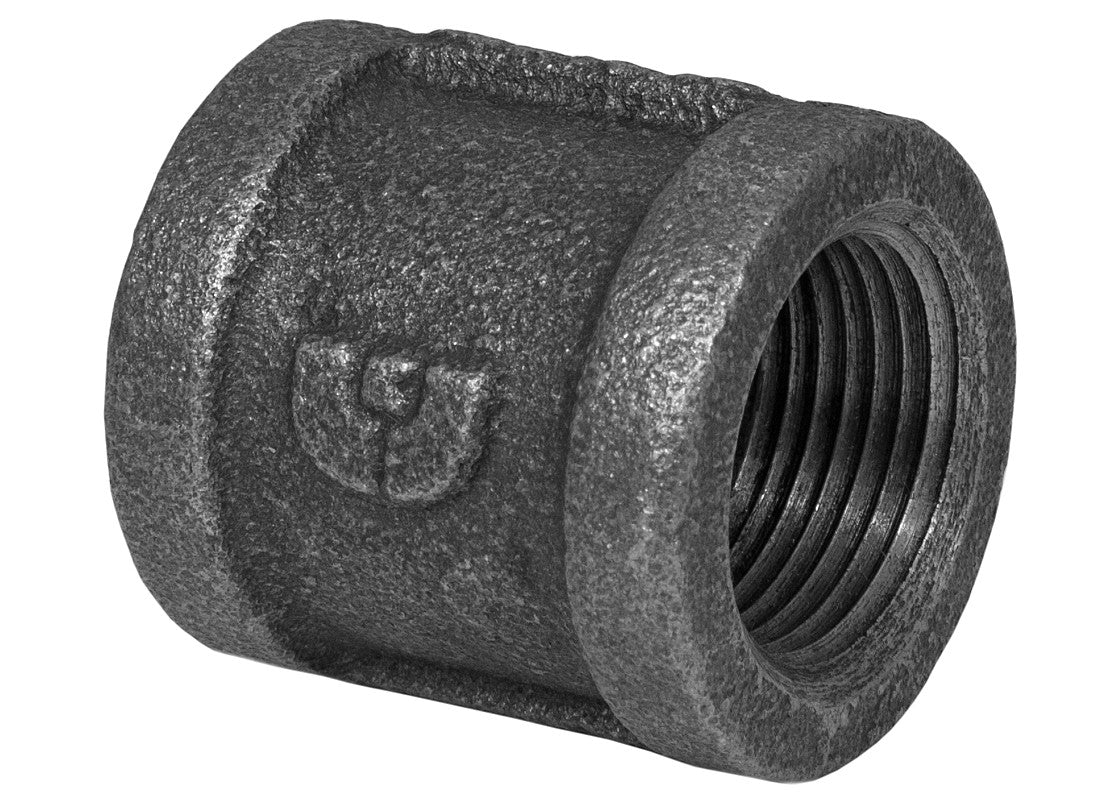

The BMI 35005 3/4 inch coupling fitting is rated for Class #150 psig, designed for robust performance and industry standard compliance. It operates across a temperature range of -20 to 150 degrees F (-29 to 26 degrees C) at 300 psig, with reduced pressure ratings up to 350 degrees F (177 degrees C) at 150 psig. This fitting is certified by cULus, UPC, ISO9001, and CRN, ensuring adherence to material, dimension, and thread standards.

• Class #150 psig rating for reliable pressure applications.
• Wide operating temperature range from -20 to 150 degrees F (-29 to 26 degrees C) at 300 psig.
• Certified by cULus, UPC, ISO9001, and CRN for quality assurance.

Product Highlights

This 3/4 inch coupling fitting offers robust performance, wide temperature tolerance, and multiple certifications for diverse industrial applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 35005

Technical Specifications

• Class Rating: #150 psig
• Operating Temperature Range (300 psig): -20 to 150 degrees F (-29 to 26 degrees C)
• Temperature Rating (265 psig): 200 degrees F (93 degrees C)
• Temperature Rating (225 psig): 250 degrees F (121 degrees C)
• Temperature Rating (185 psig): 300 degrees F (149 degrees C)
• Temperature Rating (150 psig): 350 degrees F (177 degrees C)
• Certifications: cULus, UPC, ISO9001, CRN
• Material Compliance: ASTM A197 / A197M
• Fitting Dimension Compliance: ASME B16.3, B16.14
• Union Dimension Compliance: ASME B16.39
• Thread Compliance: ASME B1.20.1, ISO 7-1
