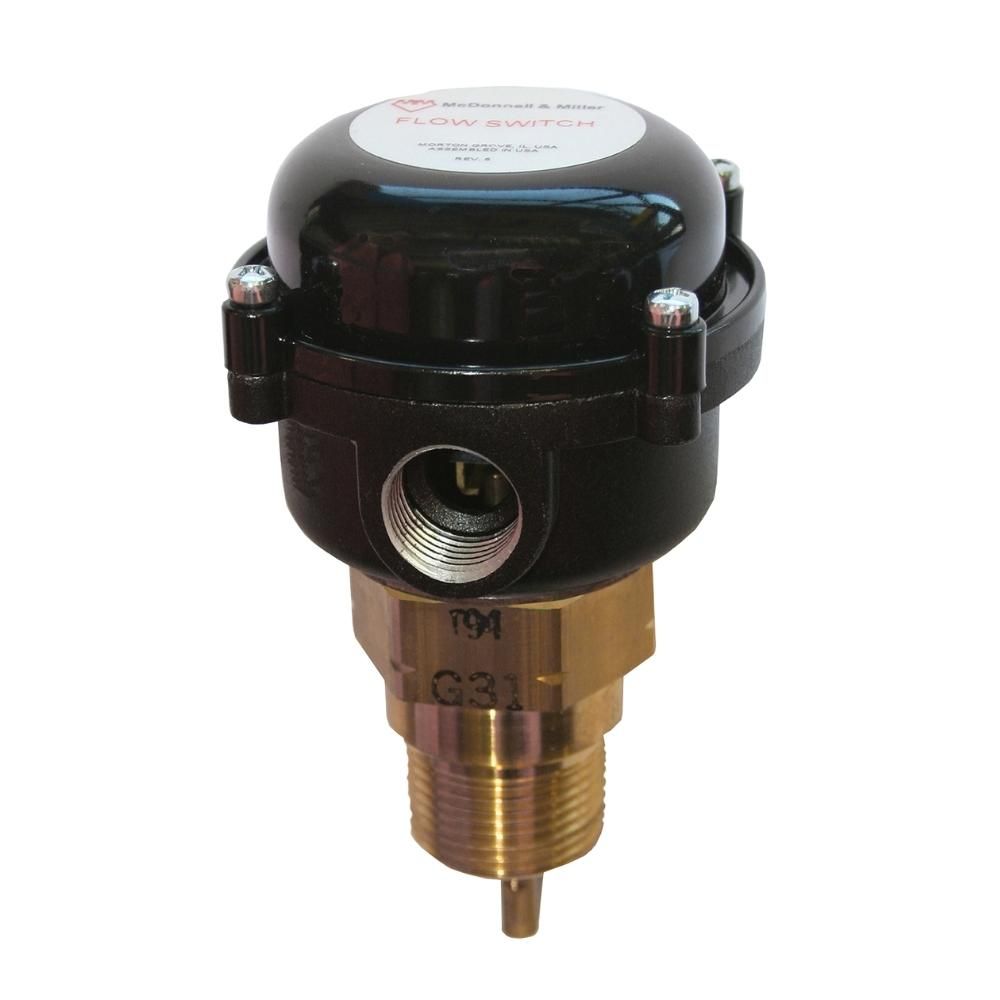

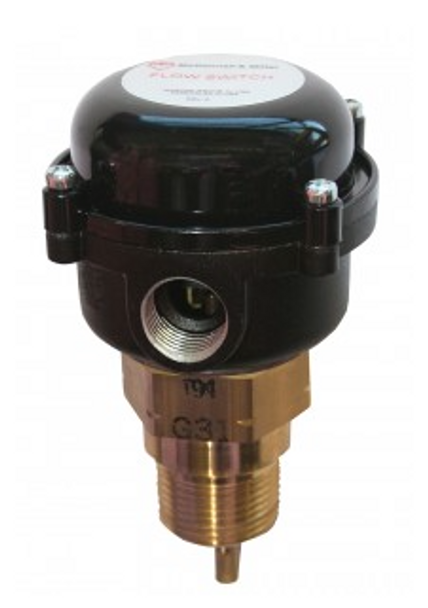

BELL & GOSSETT 120601 Flow Switch

Product Description

The BELL & GOSSETT 120601 flow switch is suitable for general applications requiring reliable flow detection. It comes with a NEMA 4X rated enclosure for water-tight and dust-tight protection. The design incorporates a sealed Monel bellows along with a single pole, double throw snap switch, making it a durable choice for various environments.

• Includes four stainless steel paddles in different sizes: one, two, three, and six (25, 50, 80, and 150mm)
• Features a sensitivity adjusting screw for precise flow adjustment
• Ideal for liquid flow detection in HVAC and plumbing systems

Product Highlights

This flow switch is designed for efficiency and precision, making it a key component in fluid management systems.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• MPN: 120601

Technical Specifications

• Series: FS8-W
• Connection Type: one inch NPT
• Input Voltage: 120 to 240 V
• Output Current: 3.7 to 7.4 A
• Frequency: 50/60 Hz
• Enclosure Type: NEMA 4X
• Minimum Operating Temperature: 32 °F (0 °C)
• Maximum Operating Temperature: 225 °F (107 °C)
• Maximum Operating Pressure: 160 psi (11.3 kg/cm²)
• Weight: 2 lbs
