Belimo ECON-ZIP-BASE ZIP Economizer Base Unit 24VAC Retrofit Solutions

Product Description

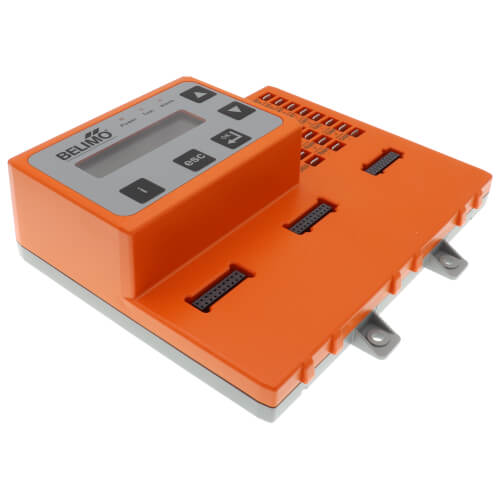

Belimo presents the ECON-ZIP-BASE, a ZIP Economizer base unit designed to optimize HVAC systems. Utilizing advanced diagnostics and an intuitive setup, this product adapts to various environmental conditions to enhance system efficiency.

• Modular design for easy installation and compliance with energy codes.
• Extended temperature transflective LCD for clear and comprehensive display.
• Automatic climate zone recognition and setup via patented ZIP code configuration.

Product Highlights

Equipped with fault detection and diagnostics (FDD), the Belimo ECON-ZIP-BASE troubleshoots and maintains operational efficiency. It supports applications for direct expansion RTUs up to 30 tons and integrates seamlessly into existing systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: ECON-ZIP-BASE

Technical Specifications

• Power Supply: 24 VAC ±20%, 50/60 Hz
• Power Consumption: 4 VA, up to 6.5 VA with modules
• Rated Impulse Voltage: 330V
• Display: 2x16 character LCD with LED backlight
• Environmental Compliance: RoHS, Conformally Coated
• Agency Listing: cULus acc. to UL873, CAN/CSA C22.2 No. 24-93
• Operating: Supports single and differential enthalpy changeover strategies
