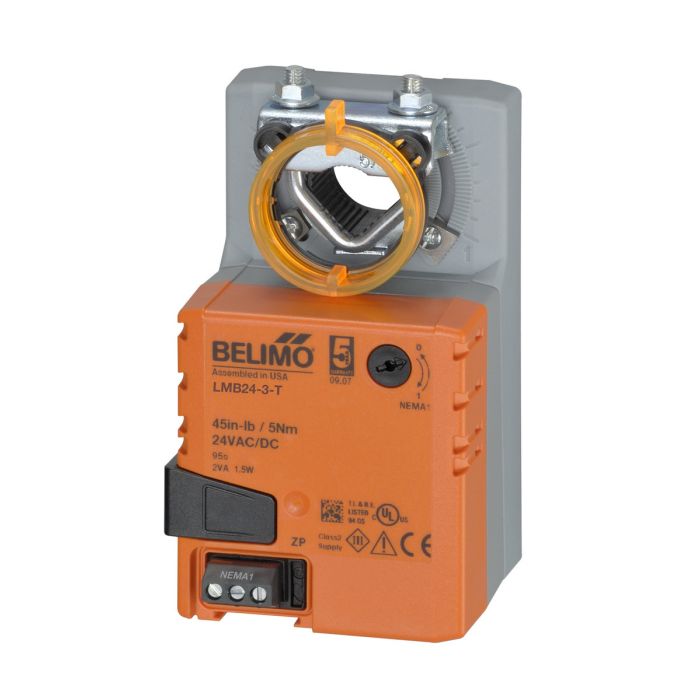

Belimo LMCB24-3-T Direct Coupled Actuator 45 in-lb Non-Spring Return

Product Description

The Belimo LMCB24-3-T is a direct coupled actuator designed for HVAC systems. This actuator provides 45 in-lb of torque for effective control of dampers. It operates using 24 VAC power and supports on/off or floating point control. The device does not require limit switches and offers a robust design for reliable performance in various conditions.

• Uses a sensorless brushless DC motor for efficient operation.
• Includes an anti-rotation strap to prevent lateral movement.
• Automatically stops at the end position to avoid damage.

Product Highlights

The LMCB24-3-T actuator is suited for reliable damper control in HVAC applications. The compact design ensures compatibility with various damper sizes while providing important operational features.

Product Information

Standard Information

• Brand: Belimo
• MPN: LMCB24-3-T

Technical Specifications

• Actuator Type: Non fail-safe
• Torque: 45 in-lb
• Power Consumption: 1.5 W running, 0.2 W holding
• Voltage: 24 V AC/DC
• Operating Conditions: -22 F to 122 F
• Angle of Rotation: 95 degrees
• Electrical Connection: Screw terminals
• Running Time (Motor): 35 seconds per 90 degrees
