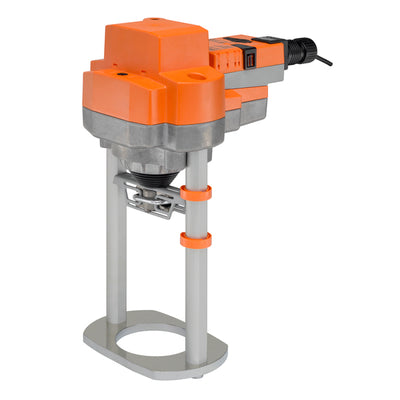

Belimo FGVL+EVX24-MFT FGVL Linkage Non-Spring 562 lbf 24V MFT

Product Description

Belimo FGVL+EVX24-MFT is a highly efficient linkage kit combined with a 24V non-spring actuator designed to retrofit AVK, EV, and RV series actuators for flanged globe valves catering to extensive stem travels and higher force requirements. This equipment is optimized for both normally open and normally closed configurations.

• Durable cast base and lower locking clamp ensure secure and robust mounting.
• Provides up to two inches of linear travel.
• Factory installed setup facilitates easy and efficient valve mounting.

Product Highlights

Belimo's FGVL+EVX24-MFT linkage kit is renowned for its construction and operational consistency. It includes all necessary hardware to enable a straightforward installation process on various valve sizes, ranging from 2-1/2 inches to 6 inches.

Product Information

Standard Information

• Brand: Belimo
• MPN: FGVL+EVX24-MFT

Technical Specifications

• Actuator Type: Non fail-safe
• Protection Category: IP54
• Electrical Connection: Cable
• Fluid: Chilled or hot water and steam
• Force: 2500N [560 lbf]
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 5 W
• Running Time (Motor): 90...150 seconds
• Voltage: AC/DC 24V
• Stroke: 1.25 inches [32mm] AVK 2 inches [50mm] EV/RV
