Product Description

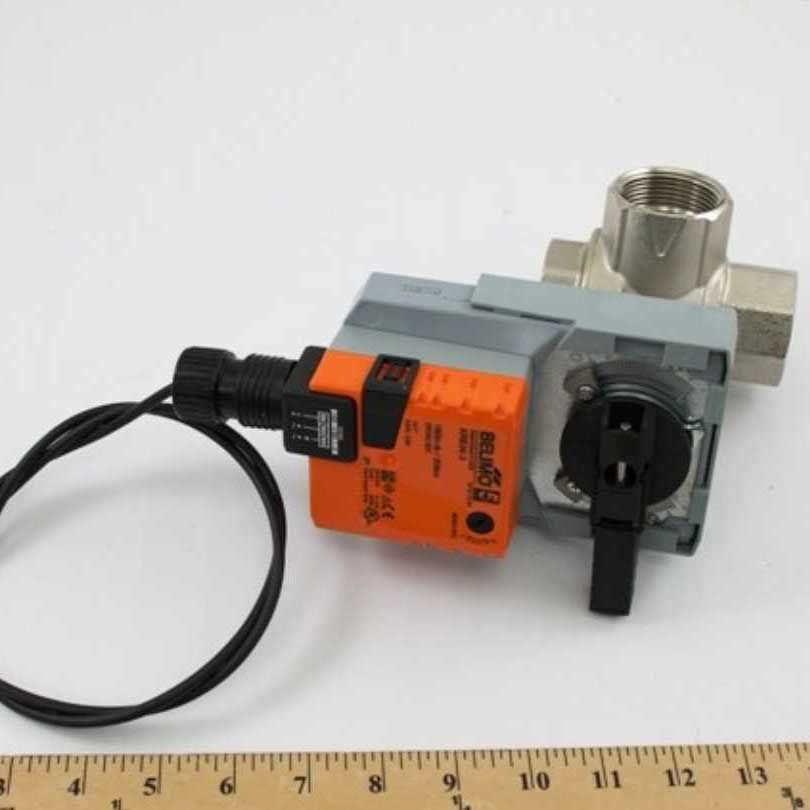

The Belimo B329+ARB24-3 Characterized Control Valve (CCV) is designed for HVAC applications. This 3-way valve has a 1.25-inch size and 10 Cv rating. It operates with a 24V floating/3-point control and features a non-spring return actuator. Ideal for managing chilled or hot water up to 60% glycol, this valve supports various HVAC system requirements.
- 3-way valve design for versatile applications
- Stainless steel trim for durability
- 1.25-inch valve size for broader compatibility
Product Highlights
This control valve features a characterized design for precise flow regulation. The stainless steel trim ensures long-lasting performance, while its 24V floating/3-point actuator allows precise control in HVAC systems.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: B329+ARB24-3
Technical Specifications
-
Valve specifications:
-
Angle of Rotation: 90
-
Controllable Flow Range: 75B0
-
Cv: 10
-
End Fitting: Internal thread
-
Fluid: Chilled or hot water up to 60% glycol
-
Pattern: 3-way
-
Pressure Independent: NO
-
Trim: Stainless steel
-
Valve Size: 1.25 inches
-
Actuator Type: Non fail-safe
-
Control Type: Floating/3-point
-
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
-
Electrical Connection: Cable
-
Manual Override: External push button
-
Power Consumption (Holding): 0.5 W
-
Power Consumption (Running): 2.5 W
-
Running Time (Motor): 90 seconds / 90B0
-
Voltage AC/DC: 24 V
