Product Description

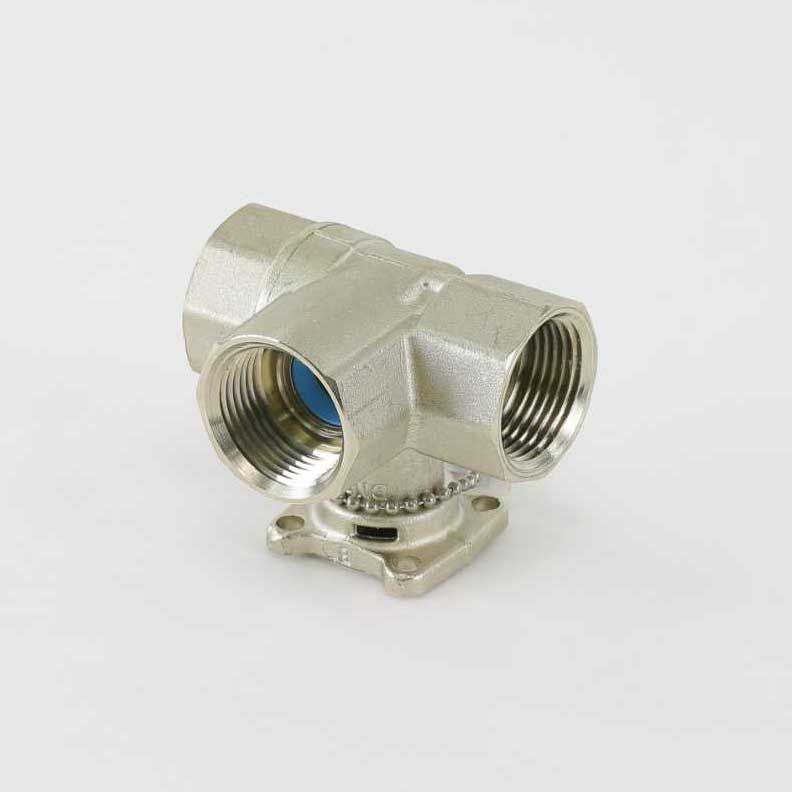

The Belimo B325 is a characterized control valve, designed for precision flow control in HVAC applications. Its 1-inch 3-way valve is often utilized in air handling units, fan coil units, and hydronic systems. The valve is equipped with a nickel-plated forged brass body and stainless steel ball and stem, making it durable for chilled or hot water applications, up to 250 degrees Fahrenheit and suitable for glycol solutions up to 60%.
- 1-inch 3-way characterized control valve
- Nickel-plated forged brass body
- Stainless steel ball and stem
Product Highlights
This control valve offers reliable flow control and energy efficiency for HVAC systems. It is ideal for applications in air handling units and fan coil units with both heating and cooling coils.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: B325
-
Type: Characterized Control Valve
-
Size: 1 inch
-
Pattern: 3-way
-
End Fitting: Internal thread
-
Fluid: Chilled or hot water up to 60% glycol
-
Pressure Independent: No
-
Trim: Stainless Steel
-
Controllable Flow Range: 75B0
Technical Specifications
-
Flow Capacity (Cv): 30
-
Valve Size: 1 inch (25 mm)
-
Pressure Rating: 600 psi
-
Maximum Temperature: 250 degrees Fahrenheit
-
Materials: Nickel-plated forged brass body, Stainless steel ball and stem
-
Connection Type: Female Threaded
-
Body Pressure Rating: 600 psi
-
Close Off Pressure: 200 psi
