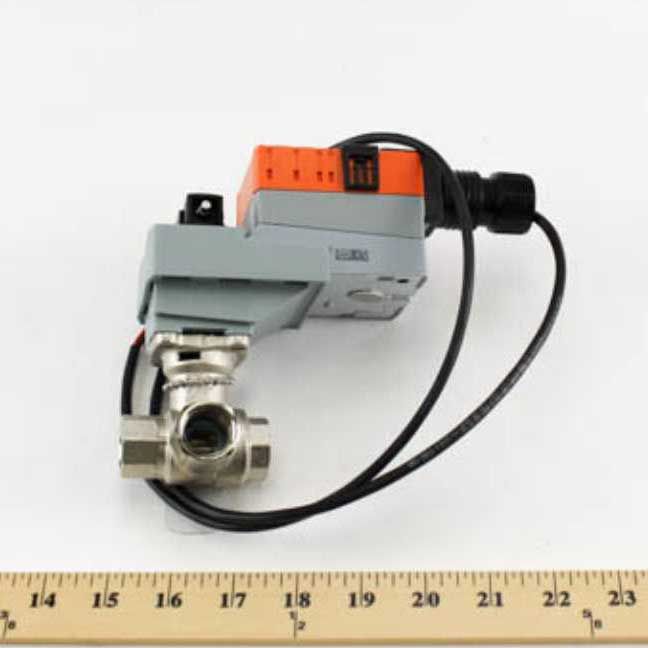

Belimo B315+LRB24-SR Ball Valve Assembly 3-Way 0.5 Inch 10 Cv Stainless Steel Non-Spring Return Actuator

Product Description

The Belimo B315+LRB24-SR valve assembly is engineered for precise flow control. This assembly features a three-way CCV ball valve constructed from durable stainless steel with a half-inch NPT connection. Designed for 10 Cv flow coefficient, it includes a 24V non-spring return actuator that delivers 45 in-lb of torque, suitable for controlled operation between 2-10 VDC.

• Robust stainless steel trim for longevity and corrosion resistance.
• Efficient operation with a 24V non-spring return actuator.
• Compact and versatile, ideal for chilled or hot water applications up to 60% glycol mixtures.

Product Highlights

Belimo's B315+LRB24-SR valve assembly is perfect for systems requiring reliable, adjustable flow control. The non-spring return actuator ensures dependable performance in commercial and industrial settings.

Product Information

Standard Information

• Brand: Belimo
• MPN: B315+LRB24-SR

Technical Specifications

• Valve Type: 3-way Characterized Control Valve
• Connection Type: 0.5 inch NPT
• Flow Coefficient (Cv): 10
• Actuator Type: Non fail-safe
• Control Voltage: DC 2-10 V, AC/DC 24 V
• Maximum Differential Pressure: Not provided
• Manual Override: External push button
• Protection Class: IP54 NEMA 2 UL Enclosure Type 2
