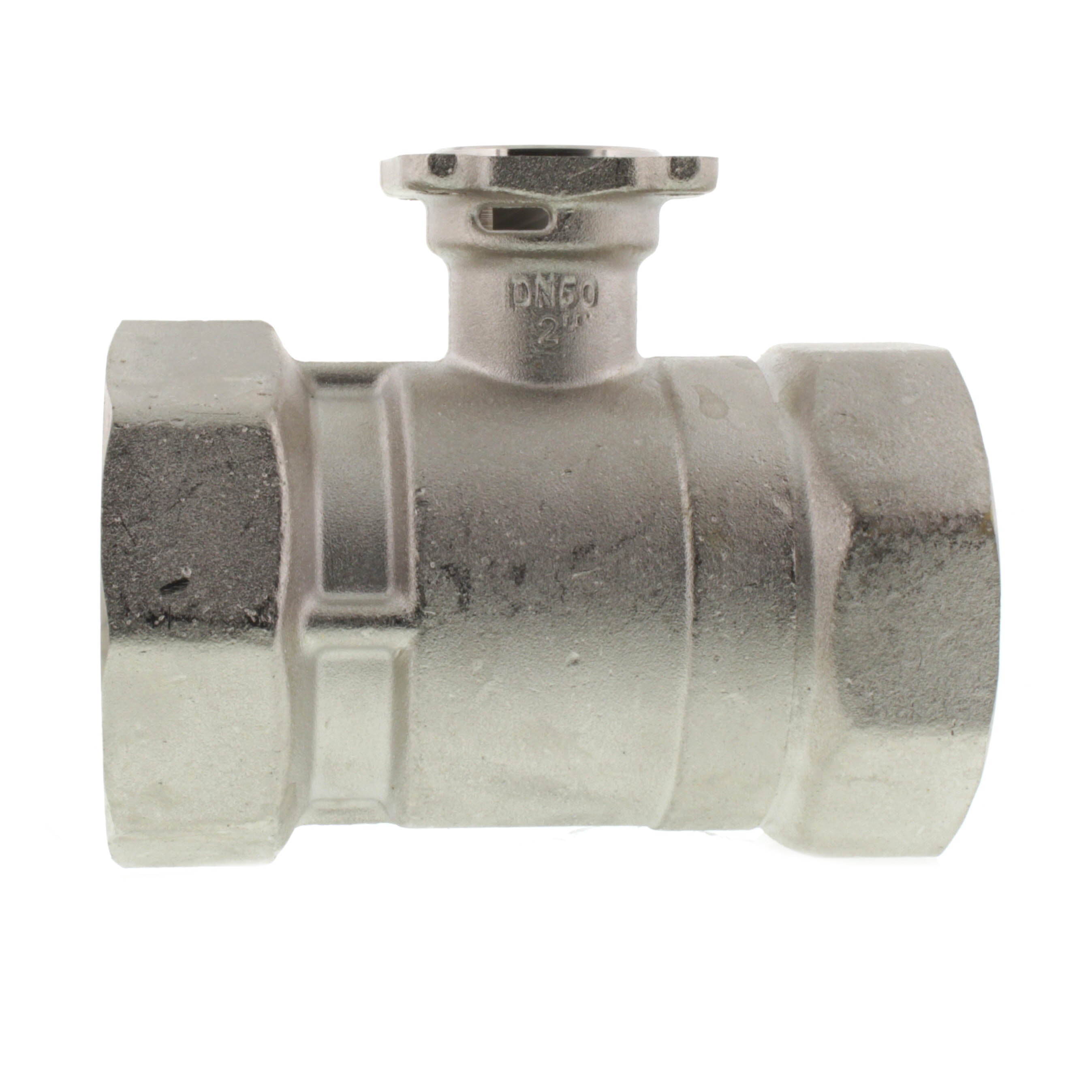

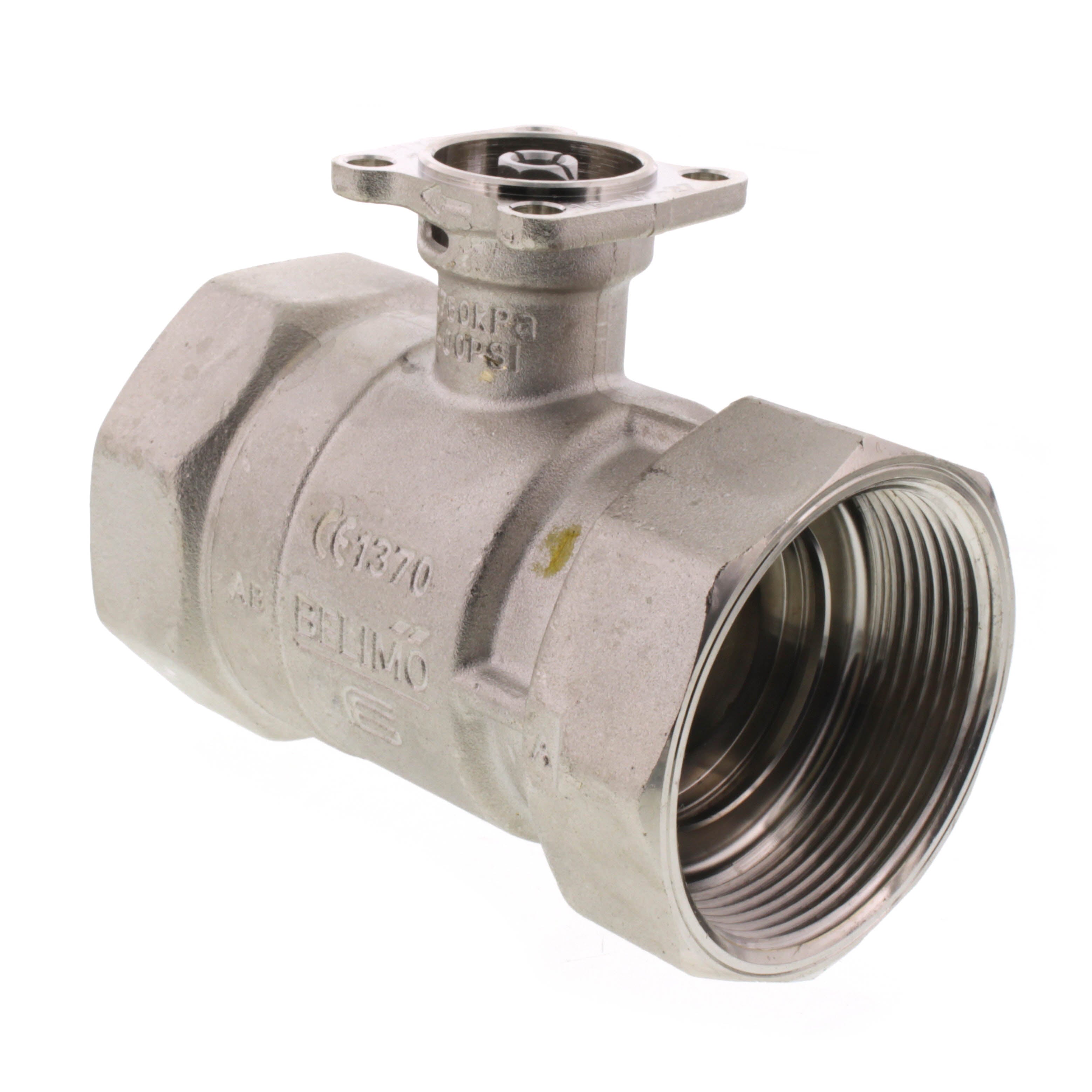

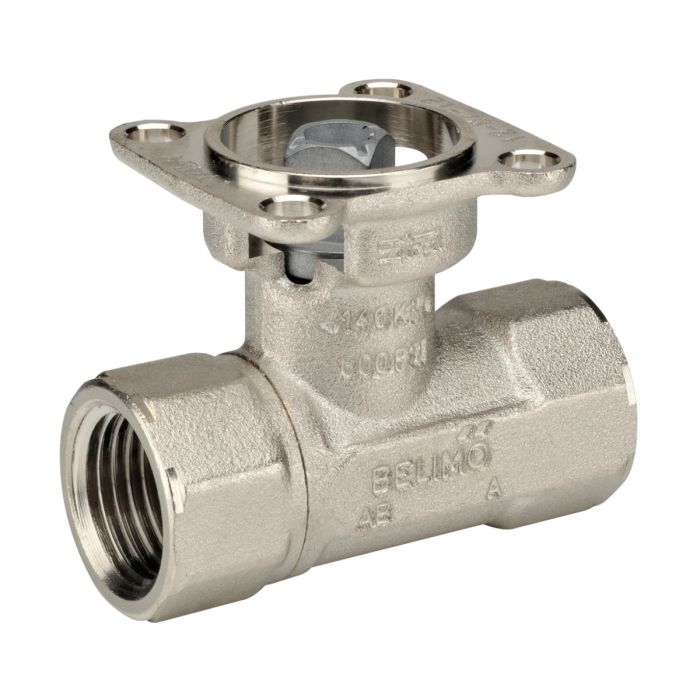

Belimo B250 CCV 2 Way 2 in NPT 57 Cv

Product Description

The Belimo B250 is a two-way characterized control valve designed for HVAC applications, specifically for chilled or hot water systems. It has a flow capacity of fifty-seven Cv and features a female threaded connection size of two inches NPT. The body of the valve is made of nickel plated forged brass while the internal components consist of stainless steel for durability. This valve is used often in air handling units and fan coil units, ensuring optimal performance in variable flow hydronic systems.

• Flow capacity: 57 Cv
• Operating temperature: Up to 250°F
• Self-cleaning ball valve design with zero leakage

Product Highlights

This valve provides reliable functionality in heating and cooling applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B250

Technical Specifications

• Fluid: Chilled or hot water up to 60% glycol
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0°F to 250°F (-18°C to 120°C)
• Valve Size: 2 inches
• End Fitting: Internal thread
• Trim: Stainless steel
