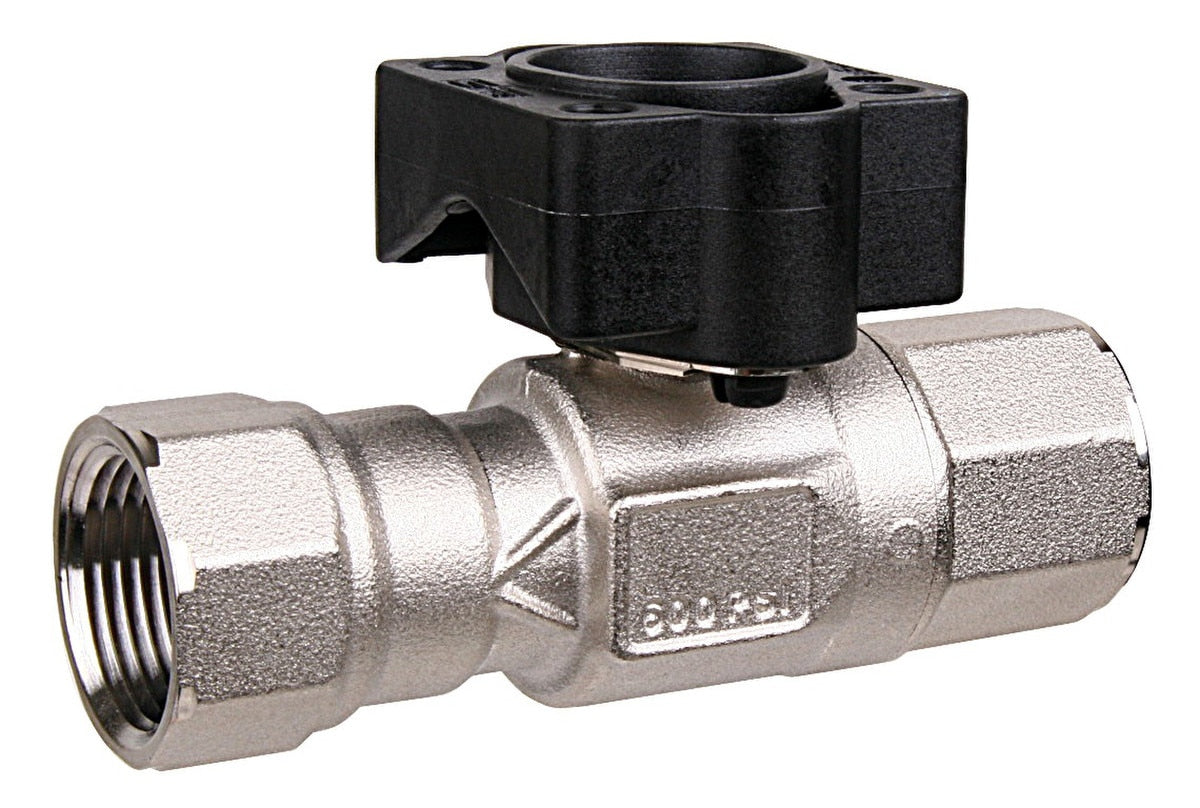

Belimo B225HT1856 HTCCV 2 Way 1 in NPT 18.56 Cv

Product Description

The Belimo B225HT1856 is a high temperature characterized control valve designed for effective flow management. With a Cv rating of 18.56, this valve is suitable for high temperature hot water and low pressure steam applications, up to sixty percent glycol. It features a nickel plated brass body and a robust stainless steel ball and stem for durability and reliability.

• High temperature hot water and low pressure steam compatible
• Stainless steel ball and stem
• Cv rating of 18.56 for optimal flow control

Product Highlights

This valve excels in HVAC systems, providing precise control in varied conditions.

Product Information

Standard Information

• Brand: Belimo
• MPN: B225HT1856

Technical Specifications

• Cv: 18.56
• Fluid: High temperature hot water/low pressure steam up to 60% glycol
• Trim: Stainless steel
• End Fitting: Internal thread
• Valve Size: 1 inch
• Pattern: 2-way
• Pressure Independent: NO
• Controllable Flow Range: 75B0
