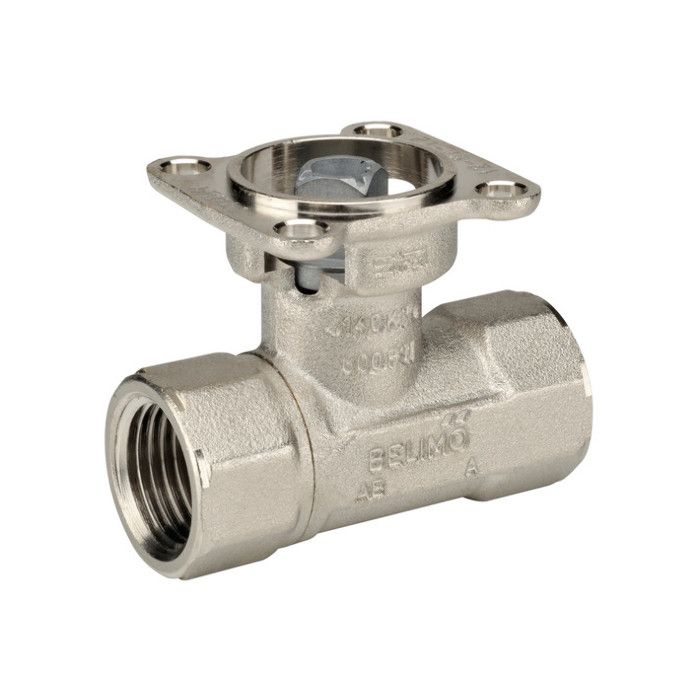

Belimo B222 CCV 2 Way 1 in NPT 7.4 Cv

Product Description

The Belimo B222 is a characterized control valve designed for efficient flow control in various hydronic systems. This valve has a nominal size of one inch and features a two-way configuration with a flow coefficient of 7.4 Cv. Constructed from forged brass, it includes a nickel-plated brass body with stainless steel ball and stem components, making it suitable for chilled or hot water applications.

• Versatile use in air handling units and fan coil units.
• Self-cleaning ball valve design ensures zero leakage.
• Suitable for water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve is engineered to provide stability in control, essential for maintaining consistent thermal output in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B222

Technical Specifications

• Valve Size: 1 inch
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0°F to 250°F (-18°C to 120°C)
• Close-Off Pressure: 200 psi
• Trim Material: Stainless steel
• Controllable Flow Range: 75B0
• Fluid Compatibility: Chilled or hot water, up to 60% glycol
• Pressure Independent: No
