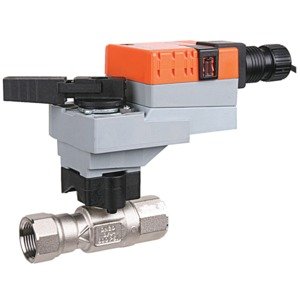

Belimo B220HT464+LRB24-SR Characterized Control Valve 0.75 Inch 2 Way 4.64 Cv Non-Spring 24V Modulating Replacement

Product Description

The Belimo B220HT464+LRB24-SR is a high-performance characterized control valve designed for precise flow control. Suitable for use in HVAC and hydronic applications, this valve offers robust performance in a compact design.

• 2-way 0.75 inch valve with a 4.64 Cv flow coefficient.
• Features a non-spring return modulating actuator.
• Operates on 24V with a modulating control signal (2-10V).

Product Highlights

This valve is crafted for efficient handling of high temperature hot water and low pressure steam, accommodating up to 60% glycol. It features a durable stainless steel trim and a manual override via an external push button.

Product Information

Standard Information

• Brand: Belimo
• MPN: B220HT464+LRB24-SR

Technical Specifications

• Control Type: DC 2 to 10 V
• Power Consumption (Running): 1.5 W
• Actuator Type: Non-fail safe
• Connection Type: Cable
• Pattern: 2-way
• Valve Size: 0.75 inches
• Manual Override: Yes
• Angle of Rotation: 90 degrees
• Voltage: AC/DC 24 V
