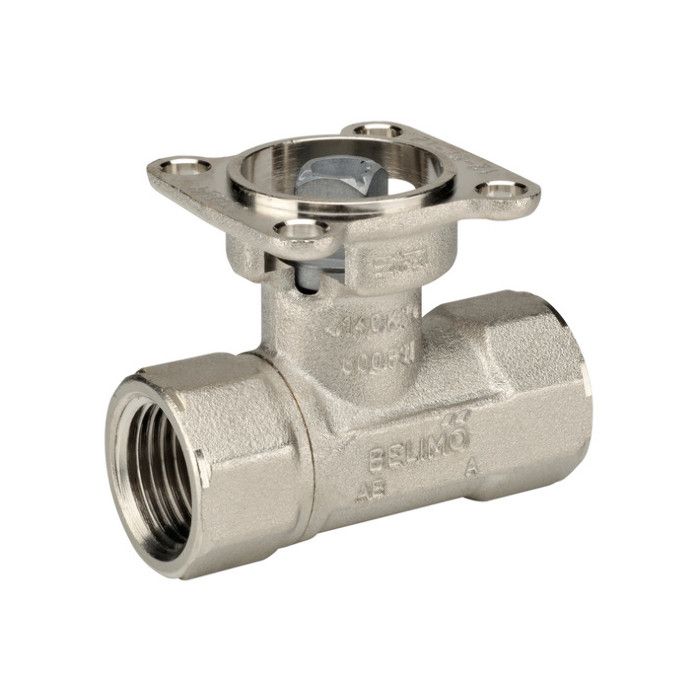

Belimo B220B CCV 2 Way 3/4 in NPT 14 Cv

Product Description

The Belimo B220B is a characterized control valve designed for use in heating and cooling systems. This valve includes a three-fourth inch NPT connection and has a flow capacity of fourteen Cv. It is made from forged brass and features a nickel-plated brass body, chrome-plated brass ball, and nickel-plated brass stem. This product is suitable for a variety of applications, including air handling units and fan coil units.

• Used in heating and cooling coils.
• Designed for hydronic systems with variable flow.
• Can handle water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

The B220B valve is engineered to ensure reliable operation in diverse environmental conditions. It is ideal for chilled hot water systems, providing efficient flow regulation.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B220B

Technical Specifications

• Flow Capacity (Cv): 14
• Close-Off Pressure: 200 psi
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Fluid: Chilled or hot water, up to 60% glycol
• Valve Size: 0.75 inches
• Flow Characteristic: Equal Percentage
• End Fitting: Internal thread
• Trim Material: Chrome plated brass
