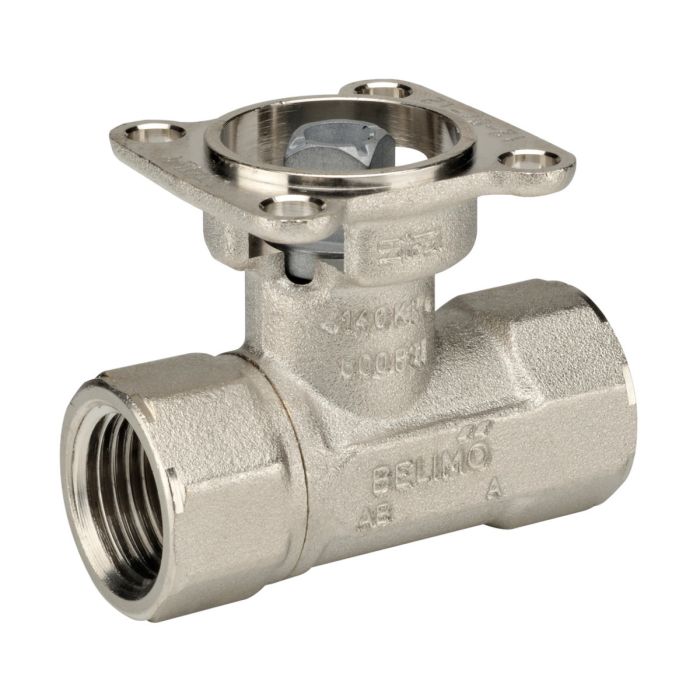

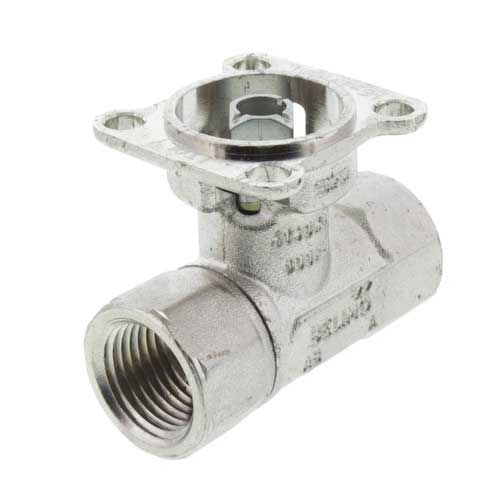

Belimo B211B CCV 2 Way 1/2 in NPT 1.9 Cv

Product Description

The Belimo B211B is a characterized control valve designed for use in HVAC systems. It features a two-way operation and is compatible with half-inch National Pipe Thread (NPT). With a flow coefficient of 1.9, this valve is suited for various applications including air handling units and fan coil units.

• Valve typically used in heating or cooling coils
• Maintenance-free design; no repacking required
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit

Product Highlights

This valve is engineered for use in hydronic systems with variable flow capabilities, offering self-cleaning action and zero leakage due to its ball valve design.

Product Information

Standard Information

• Brand: Belimo
• MPN: B211B

Technical Specifications

• Controllable Flow Range: 75B0
• Cv: 1.9
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.5 inches
• Close-Off Pressure: 200 psi
• Operating Conditions: 0 to 250 degrees Fahrenheit
