Product Description

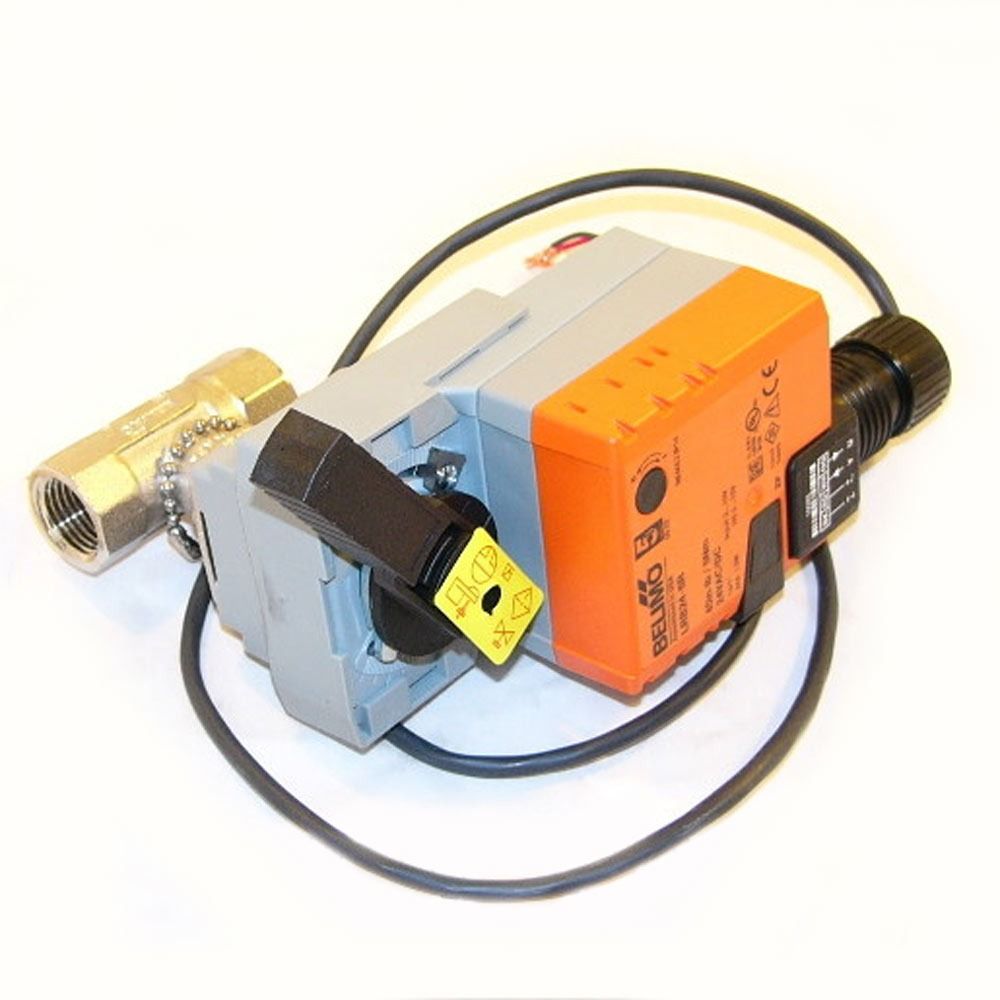

The Belimo B210B+LRB24-SR Control Valve is designed for precise flow control in HVAC systems. The assembly includes a brass-trimmed two-way valve and a non-spring return motor actuator.
- Efficient flow control with a Cv rating of 1.2
- Durable brass trim and NPT half-inch connection for reliability
- Compatible with both AC and DC power supplies at 24V
Product Highlights
The valve supports modulation with a voltage range of 2-10 Vdc making it suitable for various control applications.
Product Information
Standard Information
-
Brand: Belimo
-
Torque: 45 in-lb
Technical Specifications
-
Actuator Type: Non-fail-safe
-
Angle of Rotation: 90 degrees
-
Fluid Compatibility: Chilled or hot water up to 60% glycol
-
Control Type: DC 2...10 V
-
Voltage: AC/DC 24V
-
Protection: IP54, NEMA 2
-
Manual Override: External push button
-
Connection Type: Internal thread
