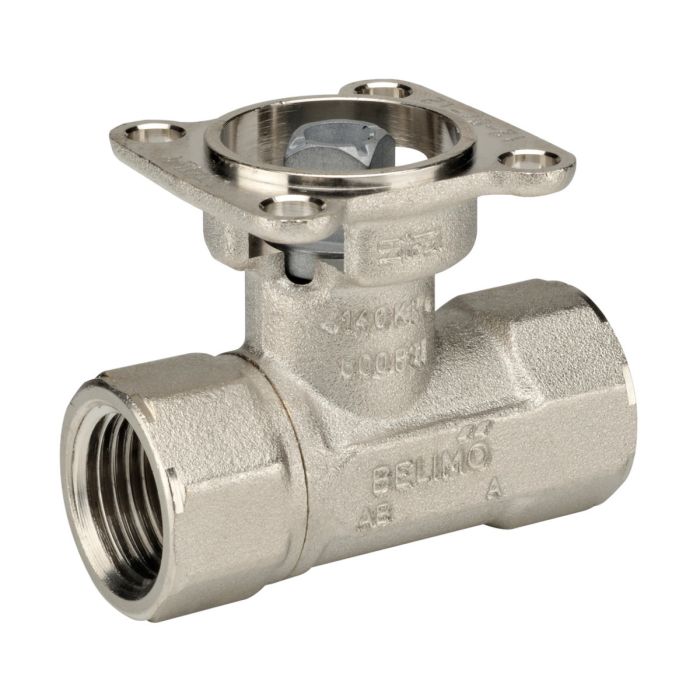

Belimo B210B CCV 2 Way 1/2 in NPT 1.2 Cv

Product Description

The Belimo B210B is a two-way characterized control valve designed for precise flow control in HVAC systems. It features a half-inch NPT connection and a flow capacity of 1.2 Cv. This valve is ideal for air handling units, fan coil units, and hydronic systems with variable flow.

• Characterized control valve with equal percentage flow characteristic
• Compatible with temperature ranges from zero degrees Fahrenheit to 250 degrees Fahrenheit
• Maintenance-free design with no repacking required

Product Highlights

The B210B valve enhances energy efficiency and control stability in both heating and cooling applications. The valve’s unique design provides slow and controlled flow adjustments, ensuring optimal performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: B210B

Technical Specifications

• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F to 250 F
• Close-Off Pressure: 200 psi
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Valve Size: 0.5 inches
• Trim Material: Chrome plated brass
• End Fitting: Internal thread
• Weight: 0.55 lbs
