Product Description

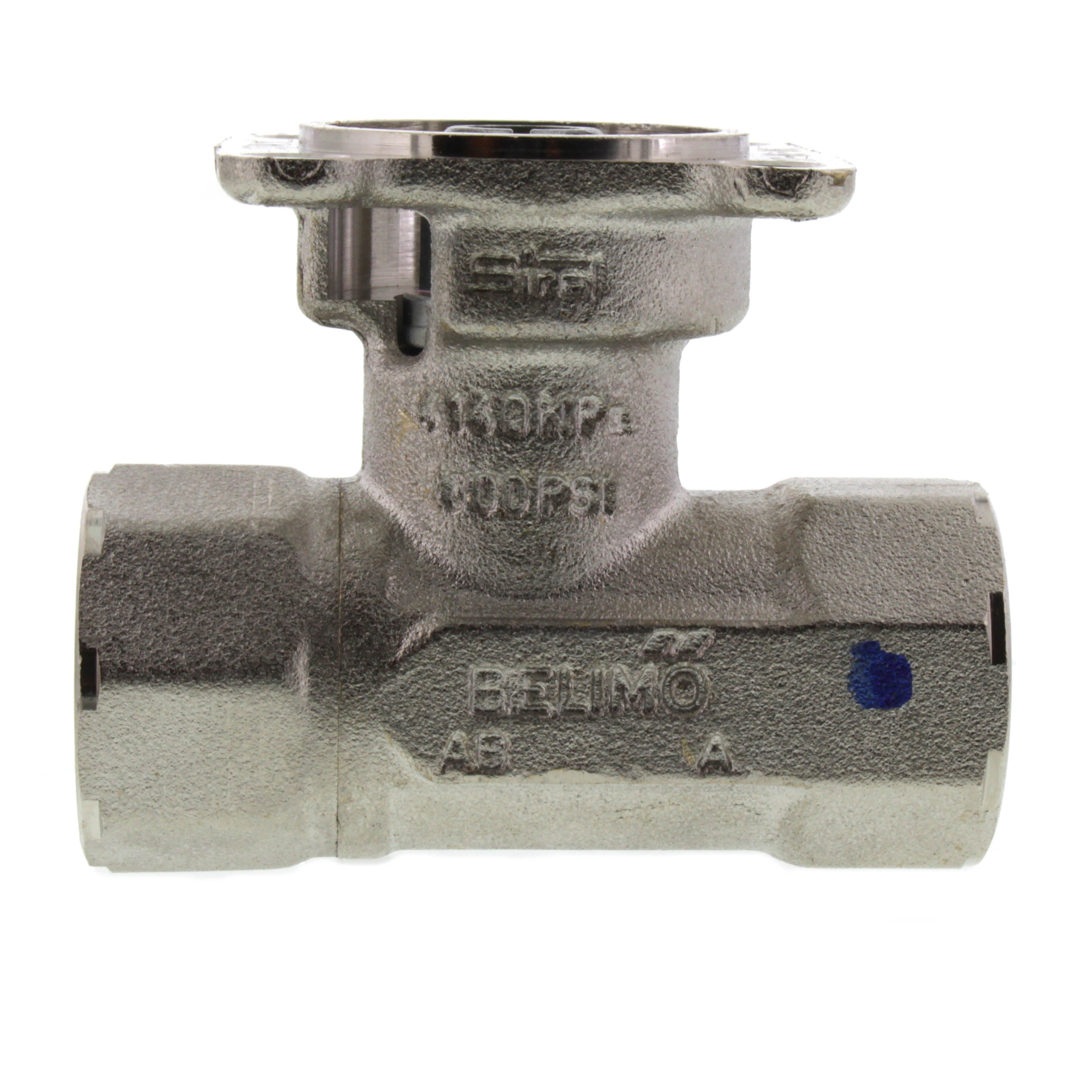

The Belimo B208 1/2-inch 2-Way Characterized Control Valve, featuring a stainless steel trim and a controllable flow range, is engineered for precise fluid control in HVAC systems. This valve is an essential component for ensuring stable and efficient operation of heating and cooling systems, especially suited for applications involving variable flow hydronics and chilled or hot water systems up to 60% glycol.
- Designed with an equal percentage characteristic for linear thermal output response.
- Equipped with a special characterizing disc inside the valve for improved flow precision.
- Optimal for air handling units on heating/cooling coils, fan coil units, and other HVAC applications.
Product Highlights
This valve boasts a Cv value of 0.46 and incorporates internal thread end fittings that facilitate easy installation and maintenance. It is designed for non-pressure independent applications.
Product Information
Standard Information
Technical Specifications
-
Valve Size: 0.5 inches
-
Cv Value: 0.46
-
End Fitting: Internal thread
-
Trim: Stainless steel
-
Flow Pattern: 2-way
-
Pressure Independent: No
-
Controllable Flow Range: 75B0
-
Fluid Compatibility: Chilled or hot water up to 60% glycol
