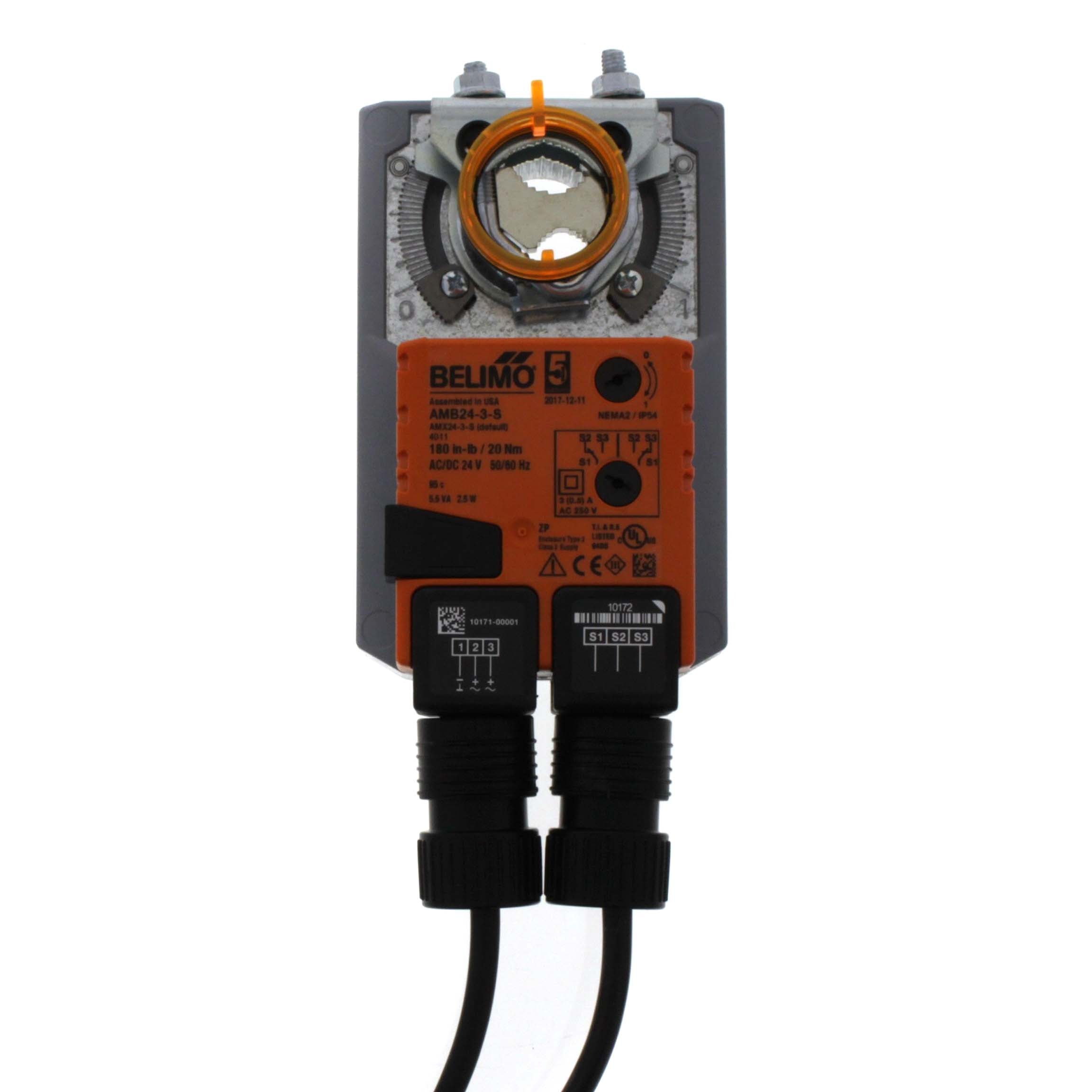

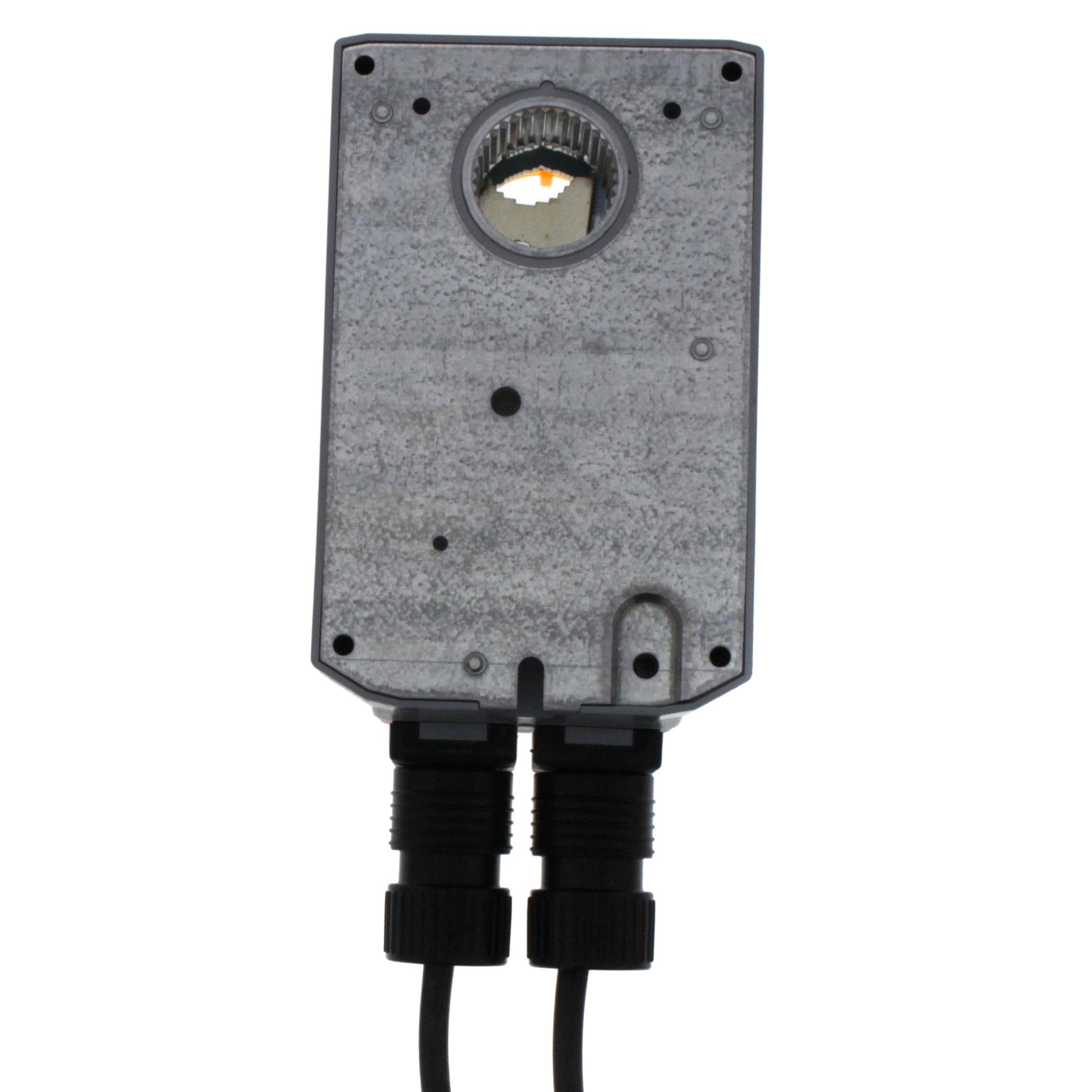

Belimo AMB24-3-S Direct Coupled Actuator 180 in-lb

Product Description

The Belimo AMB24-3-S is a direct coupled actuator designed for on/off and floating point control of dampers in HVAC systems. It operates on 24 VAC and provides a torque of 180 inch-pounds. The actuator is easy to install, with a universal clamp that allows for self-centering on damper shafts. It is suitable for various HVAC applications, ensuring reliable operation.

• Provides 180 in-lb torque for effective damper control.
• Equipped with a brushless DC motor for consistent performance.
• Includes a built-in SPDT auxiliary switch for safety signaling.

Product Highlights

The AMB24-3-S actuator ensures effective positioning and control of HVAC dampers, reducing labor costs through straightforward installation and operation.

Product Information

Standard Information

• Voltage: 24 VAC/DC
• Torque: 180 in-lb [20 Nm]

Technical Specifications

• Actuator Type: Non fail-safe
• Angle of Rotation: 95 degrees
• Auxiliary Switches: 1 x SPDT
• Control Type: Floating/3-point
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Electrical Connection: 3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
• Power Consumption: 2.5 W (running), 0.5 W (holding)
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
