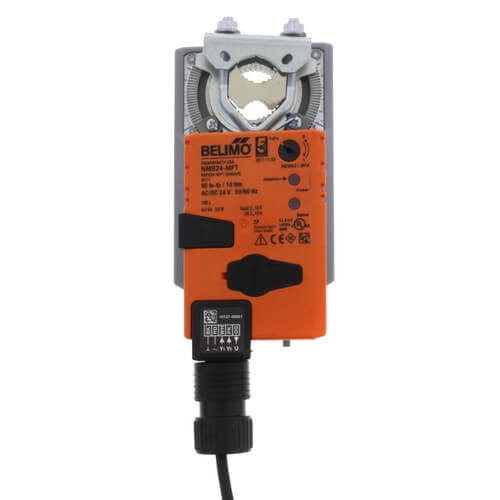

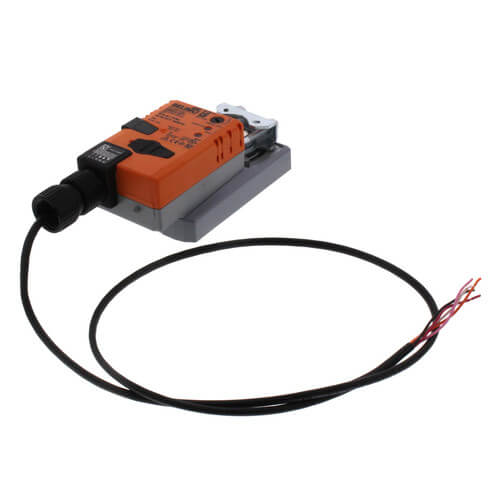

Belimo NMB24-MFT Direct Coupled Actuator 90 in-lb

Product Description

The Belimo NMB24-MFT is a direct coupled actuator with a torque rating of ninety inch-pounds. It operates on twenty-four volts and is designed for modulating control in HVAC systems. This actuator utilizes a brushless DC motor, which is regulated by an application-specific integrated circuit (ASIC).

• Self-centering design for easy mounting on various jackshafts.
• Low power consumption in holding mode, adding to overall efficiency.
• Includes an anti-rotation strap that prevents lateral movement of the actuator.

Product Highlights

This actuator is suitable for applications where precision control is required and can directly mount to damper shafts. It is electronically protected against overload and designed to modulate temperature and airflow efficiently.

Product Information

Standard Information

• Brand: Belimo
• MPN: NMB24-MFT
• Power Supply: 24 VAC/DC

Technical Specifications

• Torque: 90 in-lb [10 Nm]
• Power Consumption: 3.5 W running, 1.3 W holding
• Ambient Temperature Range: -22°F to +122°F
• Running Time: 150 seconds
• Electrical Connection: 3 ft. plenum rated cable
• Control Input: 2 to 10 VDC
• Degree of Protection: NEMA 2, IP54
• Manual Override: External push button
