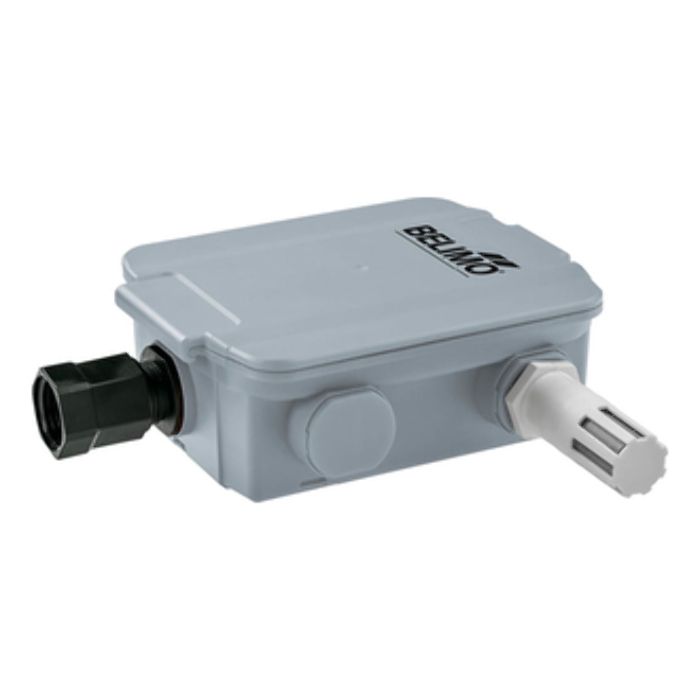

Belimo 22UTH-530E Outdoor Humidity And Temperature Sensor

Product Description

The Belimo 22UTH-530E is an outdoor humidity and temperature sensor designed for measuring relative and absolute humidity and temperature in external environments. This sensor is built with a Ni1000 passive temperature output signal and provides a 4 to 20 mA active humidity output signal. It features a weather shield and is housed in a NEMA 4X enclosure, making it suitable for various outdoor applications.

• Includes conduit adaptor and weather shield
• Capable of outputting enthalpy or dewpoint signals
• Wall mount configuration for easy installation

Product Highlights

This sensor is ideal for HVAC systems where accurate outdoor measurements are essential for efficient operation and control.

Product Information

Standard Information

• Brand: Belimo
• MPN: 22UTH-530E

Technical Specifications

• Mounting: Wall Mount
• Enclosure: NEMA 4X
• Configuration: Outdoor
• Sensors Application: Humidity, Temperature
• Temperature Sensor Type: 1K
• Output Voltage Signal Range: 4 To 20 mA
• Measuring Range Temperature: -30 to 120 degrees F
• Measuring Range Humidity: 0 to 100% RH non-condensing
