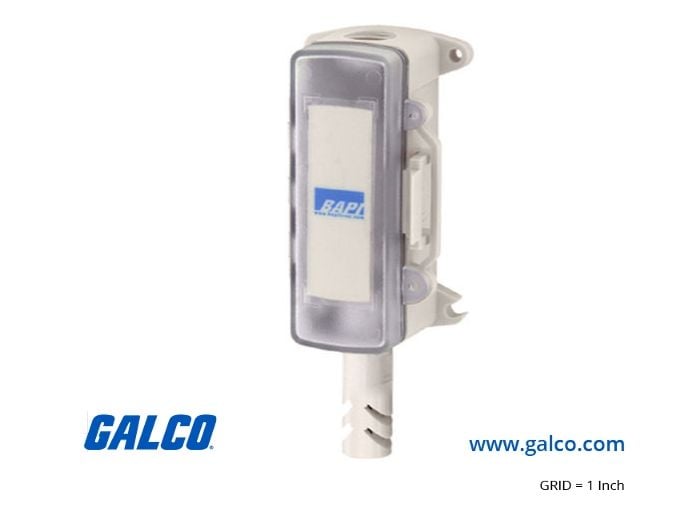

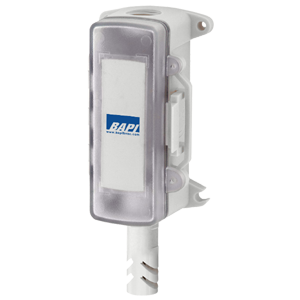

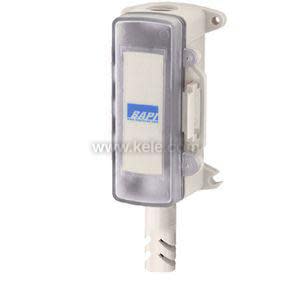

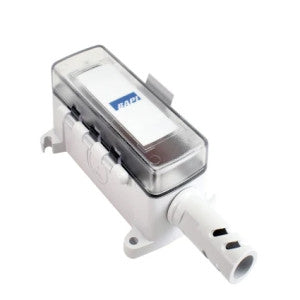

BAPI BA/T1K-O-BB2 Outside Air Temperature Sensor

Product Description

The BAPI BA/T1K-O-BB2 is an outside air temperature sensor tailored for HVAC systems. It employs a one thousand Ohm Platinum RTD for measuring temperature accurately. The sensor is secured in a NEMA 4 rated enclosure made of UV-resistant polycarbonate that protects it from various environmental elements.

• Features UV-resistant plastic for protection against sunlight and enhanced air circulation.
• Offers a quick response time for precise temperature measurements.
• Meets CE and RoHS compliance standards.

Product Highlights

Product Information

Standard Information

• Brand: BAPI
• Manufacturer Part Number: BA/T1K-O-BB2

Technical Specifications

• Sensor Type: RTD
• Enclosure Rating: NEMA 4, BAPI Box 2 IP66 rated
• Temperature Range: 32 degrees to 158 degrees Fahrenheit (0 degrees to 70 degrees Celsius)
• Accuracy: ±0.55 degrees Fahrenheit (±0.30 degrees Celsius)
• Mounting: Directly to wall or duct
• Wiring Terminations: 22 AWG wire, etched teflon leads
• Weight: 0.8 lb (0.36 kg)
• Approvals: CE, RoHS
• Warranty: Lifetime
• Housing Material: Polycarbonate
• Sensor Element: 1K Platinum RTD 385
• Output Signal: Resistance
• Operating Temperature: -40 to 85 degrees Celsius
