Bapi ba/h200-o-wp humidity

Product Description

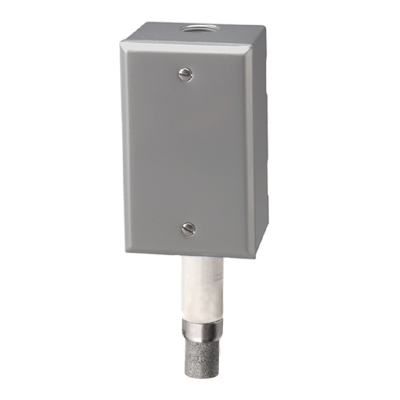

The BAPI BA/H200-O-WP is a ±2% humidity transmitter with an interchangeable output of 0 to 5 V or 4 to 20 mA. Designed for outside air applications, it features a weatherproof enclosure. It is suitable for economizer control, psychrometric calculations, enthalpy, dew point, and wash down applications.

• Popular room housing
• 2% Accuracy
• Duct and OSA NEMA 4 housing

Product Highlights

The BA/H200-O-WP humidity transmitter offers field-selectable 24 VDC or 24 VAC power and 4-20 mA, 0-10V, or 0-5V signal options. It is also field calibratable.

Product Information

Standard Information

• Brand: BAPI
• Manufacturer Part Number: BA/H200-O-WP

Technical Specifications

• Accuracy: 2%
• Housing Material: Metallic
• Output: 0 - 5 VDC
• Power Requirements: 24 VAC,24 VDC
• Application: Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
• Mount: OSA
• Manufacturer: BAPI
• MODEL NUMBER: BA/H200-O-WP
• SKU: BAP1F-46
