Babbitt CIRG3 Cast Iron Standard Chain Wheel Operator

Product Description

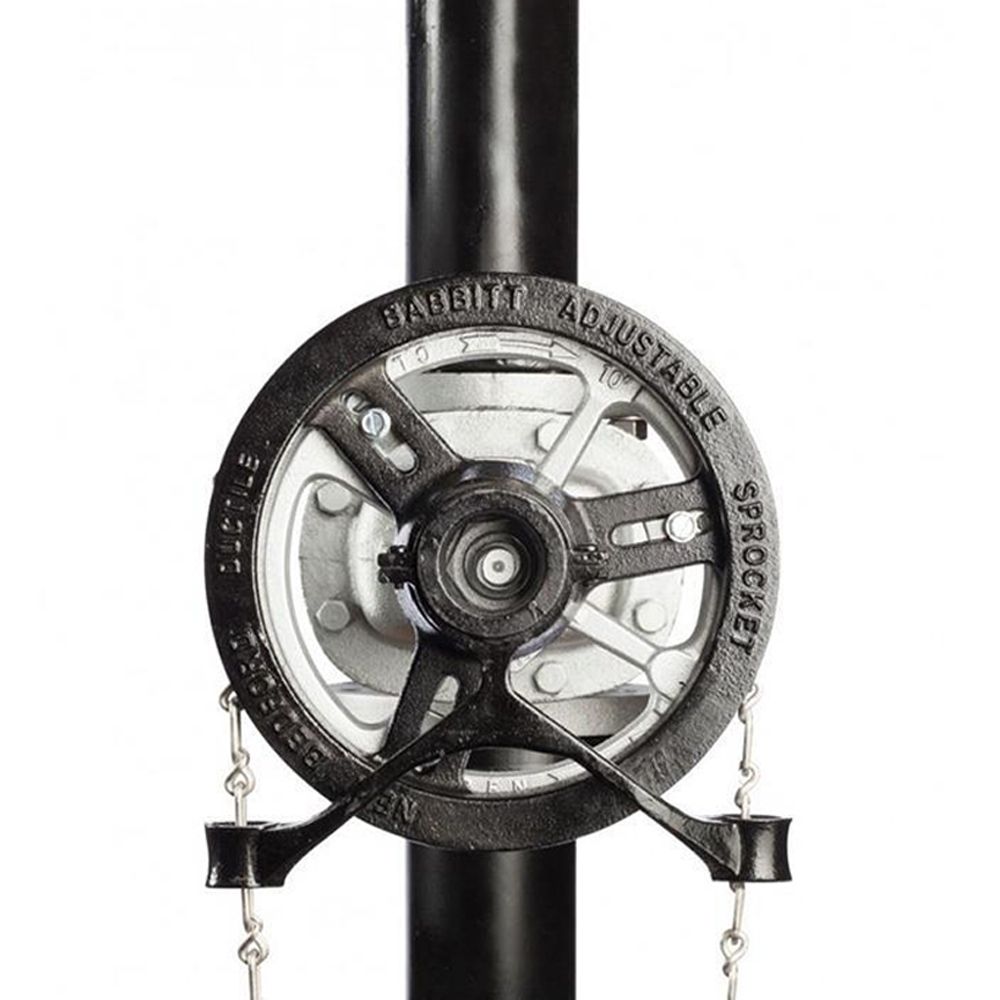

The Babbitt CIRG3 is a cast iron chain wheel operator created for controlling valves that are in elevated or hard-to-reach placements. This operator connects easily to valve handwheels, enabling remote operation through a chain. The design includes a groove that allows for attachment of a chain guide. Equipped with attachment sets, it secures the chainwheel directly to the valve handwheel.

• Includes a zinc-plated carbon steel attachment set.
• Features an integrated groove for chain guide attachment.
• Suitable for valve handwheels ranging from twelve and three-fourths to fifteen and one-half inches in diameter.

Product Highlights

This chain wheel operator enhances accessibility for valve operation in difficult locations.

Product Information

Standard Information

• Brand: Babbitt
• Material: Bronze, Cast Iron, Carbon Steel

Technical Specifications

• Coating: Zinc Plated
• Handle Type: Chainwheel
• Number of Handles: Single Handle
• Valve Size: Three inches
• Weight: Eighteen pounds
• ASTM: ASTM B-62
• Height: Fifteen and one-half inches
• Diameter: Two and one-eighth inches
