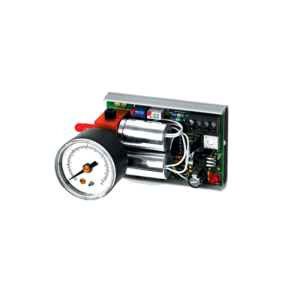

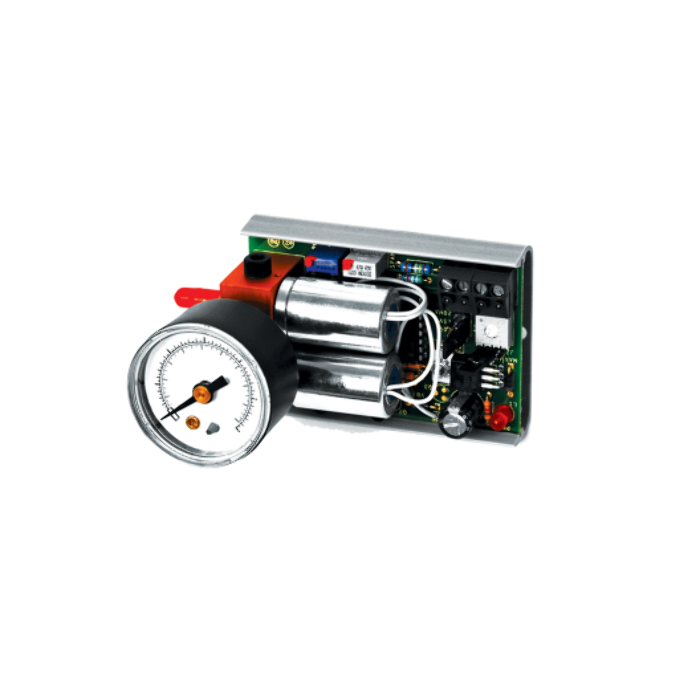

Auto Components PXP7.3G Electric To Pneumatic Transducer

Product Description

The Auto Components PXP7.3G electric to pneumatic transducer converts electric signals into pneumatic pressure with reliable performance. This model takes an analog input signal of one to five, two to ten, three to fifteen VDC or four to twenty mA and provides an output pressure range of zero to fifteen psig. The transducer is suitable for applications requiring accurate pressure control.

• Automatic modulation of control valve for maintaining set point pressure.
• Provides a feedback signal to indicate branch line pressure.
• Suitable for three-way mixing valve control and compressor staging.

Product Highlights

This transducer is ideal for HVAC systems and industrial applications needing precise pneumatic control.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: PXP7.3G

Technical Specifications

• Input Signal Source: 1 to 5, 2 to 10, 3 to 15 VDC or 4 to 20 mA
• Output Pressure Range: 0 to 15 psig
• Bleed Orifice: 0.007 inches
• Control Features: Will modulate control valves to regulate branch line pressure
• Feedback Signal: 0 to 5 VDC
