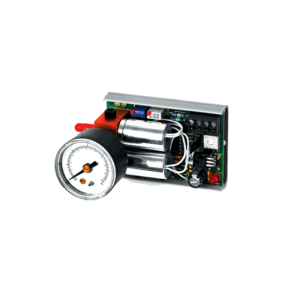

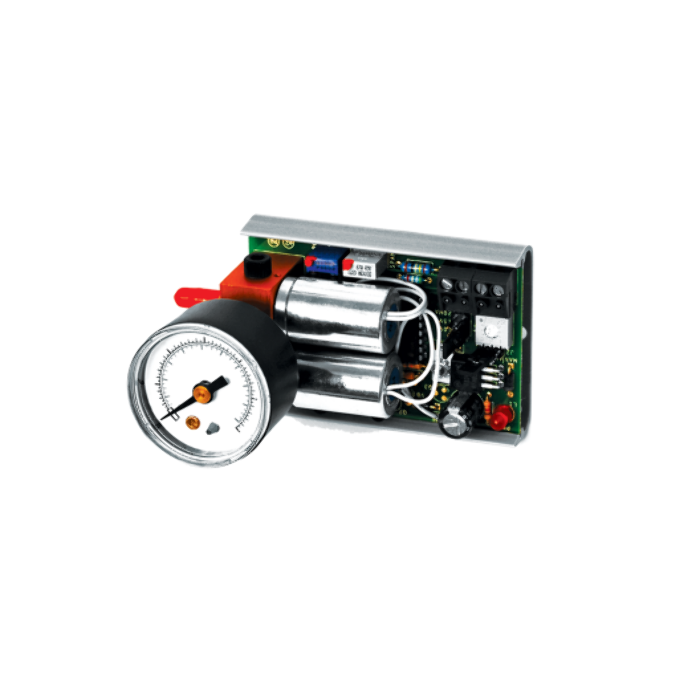

Auto Components PXP2.3 Electric To Pneumatic Transducer

Product Description

The Auto Components PXP2.3 is an electric to pneumatic transducer designed for efficient control in pneumatic systems. It converts electronic signals into pneumatic outputs and is essential for maintaining consistent pressure levels in complex systems.

• Analog to pneumatic output with multiple input signal options.
• Output pressure range of zero to fifteen psig.
• Automatically modulates control valves based on input signals.

Product Highlights

This transducer works to regulate branch line pressure while providing feedback signals for precise control.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: PXP2.3
• Minimum Order Quantity: 1
• Availability: In Stock

Technical Specifications

• Input Signal Sources: 1 to 5, 2 to 10, 3 to 15 VDC or 4 to 20 mA
• Output Pressure Range: 0 to 15 psig
• Feedback Signal: 0 to 5 VDC
• Control Features: Three way mixing valve control, pilot positioner control, compressor staging, chiller loading
