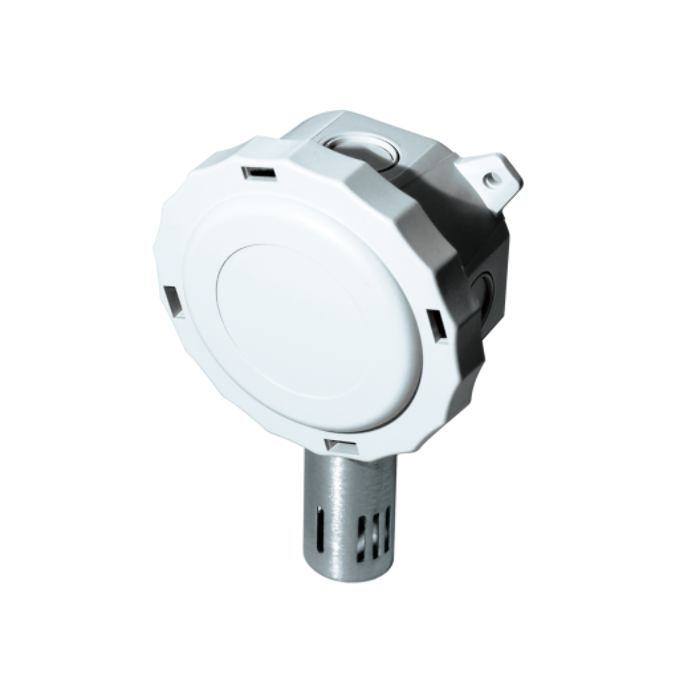

Auto Components A/RH5-O Outdoor Humidity Sensor

Product Description

The Auto Components A/RH5-O is designed for monitoring outdoor air humidity. This sensor is useful for economizer control and psychrometric calculations such as enthalpy and dew point. The robust design includes a hydrophobic filter for moisture and dust resistance, enhancing reliability.

• 5% accuracy with capacitive sensing technology
• Supports a wide range of voltage supply from 15-40 VDC or 18-28 VAC
• Integral DIP switches for easy field configuration

Product Highlights

The sensor features a thermoset polymer capacitive design that provides a proportional analog current or voltage output signal. Its factory-applied hygroscopic filter ensures long-term performance in demanding conditions.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/RH5-O

Technical Specifications

• Mounting: Wall Mount
• Enclosure: Euro
• Configuration: Outdoor
• Sensors Application: Humidity
• Output Voltage Signal Range: 0 to 5 V, 0 to 10 V, 4 to 20 mA
