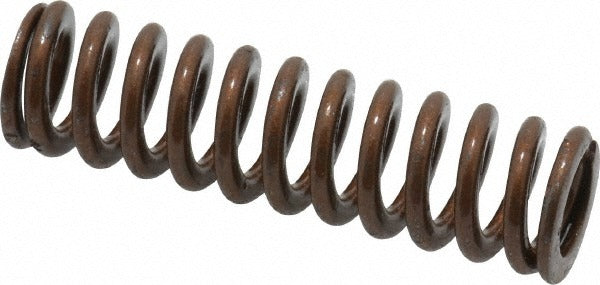

Associated Spring Raymond 105-207 Die Spring Gold

Product Description

The ASSOCIATED SPRING RAYMOND 105-207 is a heavy-duty die spring engineered for use in stamping dies, punching tools, and other precision tooling applications where consistent, repeatable force is required. Built from chromium alloy steel with a trapezoidal wire cross-section, this spring delivers a maximum deflection load of 72.5 pounds and a spring rate of 126 pounds per inch. The gold color coding identifies the load classification within the standard die spring color-coding system, allowing for quick identification during tooling setup and maintenance. It is installed and serviced by tool-and-die machinists, maintenance technicians, and industrial mechanical specialists.

This die spring is suited for use in metal stamping presses, injection mold tooling, and general industrial die sets where controlled compression force and long cycle life are required. The 0.5 inch hole diameter accommodates standard die set guide pins, while the 9/32 inch rod diameter provides clearance for inner-rod guided installations. The 1.75 inch free length fits standard die shoe pocket depths common in light-to-medium duty tooling applications.

Key Features

• Trapezoidal wire cross-section provides higher load capacity per unit length compared to round wire die springs
• Gold color coding indicates load class for rapid visual identification during die setup
• Maximum deflection of 0.53 inches with a maximum deflection load of 72.5 pounds
• Spring rate of 126 pounds per inch for consistent, predictable force output
• Chromium alloy steel construction for durability under high-cycle tooling conditions
• Manufactured under ISO 9001:2008 and ISO/TS 16949:2009 certified quality systems with TUV Rheinland registration

Compatibility

Designed as a standard die spring replacement for industrial die sets and tooling applications requiring a 0.5 inch hole diameter, 9/32 inch rod diameter, and 1.75 inch free length in the gold load classification.

Installation Notes

Die springs are installed by qualified tool-and-die machinists or industrial maintenance technicians. Always de-energize and lock out the press before removing or installing die springs. Inspect the die pocket and guide pin for wear or damage before fitting the replacement spring. Do not exceed the rated maximum deflection of 0.53 inches, as over-compression will shorten service life and may cause spring failure.
