Aspen A2LZS Dual A2L Refrigerant Detection System (RDS) Kit

Product Description

The ASPEN A2LZS Dual Refrigerant Detection System (RDS) Kit is designed for Aspen coils and air handlers that can be field-configured with A2L refrigerant systems, R-454b or R32. Aspen provides universal RDS kits for R32 and R454B to provide optimal performance. Certified to meet UL 60335-2-40 requirements, each kit provides a complete installation of the sensor and mitigation device required by the UL standard.

• Dual Safety Listed for R32 and R454B and compliant with UL 60335-2-40.
• Compatible with ALL Aspen Coils.
• System designed to last the useful life of the evaporator coil.

Product Highlights

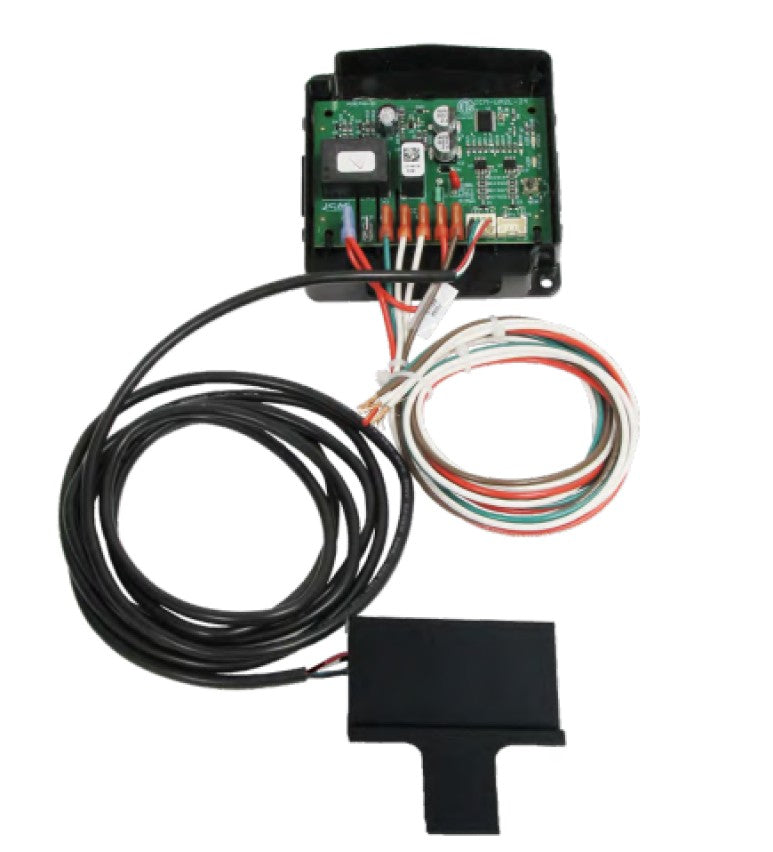

The A2LZS RDS kit includes all components needed for RDS installation and has an optional relay for controlling additional components. It features flexible installation and is ideal for installs on existing equipment.

Product Information

Standard Information

• Brand: ASPEN
• Manufacturer Part Number: A2LZS

Technical Specifications

• Compliance: UL 60335-2-20 COMPLIANT
• Refrigerant Compatibility: R454B and R32
• Sensor Lifetime: 15+ year lifetime with no calibration required
• Sensor Wire Length: 8 feet
• Mitigation Board Power Wire Length: 3 feet
• Mitigation Options: Standard mitigation control (S) or Mitigation + accessory control (R)
