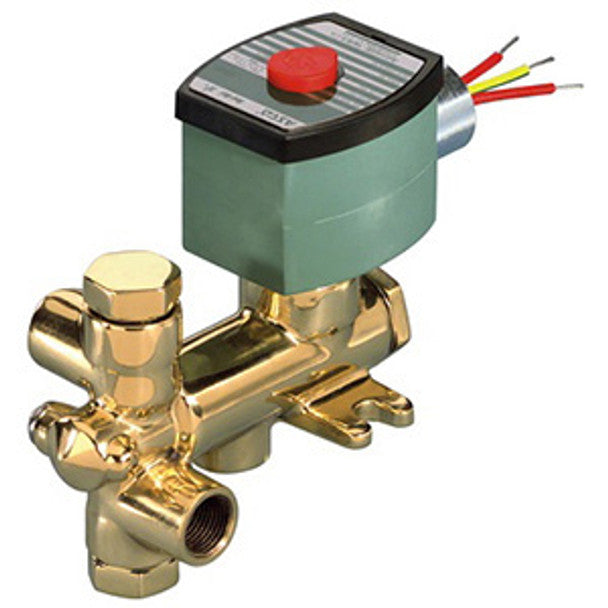

ASCO 8300A081RF General Service Solenoid Valve

Product Description

The ASCO 8300A081RF is a solenoid valve designed for general service use. This valve features a direct-acting, 3-way design with a brass body and a quarter-inch female threaded port connection suitable for multiple applications.

• Direct-acting design eliminates the need for minimum operating pressure.
• Metal seating materials enable use with aggressive fluids.
• Explosionproof with NEMA 1/2/3/3S/4/4X rating.

Product Highlights

Product Information

Standard Information

• Application: General Service
• Approval: CE, CSA

Technical Specifications

• Body Material: Brass
• Input Supply Rating: 110 VAC 50 Hz, 120 VAC 60 Hz
• Port Connection: 1/4 in. Female Threaded
• Valve Position: Normally Closed (NC)
• Enclosure (NEMA Rating): NEMA 1/2/3/3S/4/4X
• Product Family: Series 300
• Product Type: Solenoid Valves
• Voltage: AC 120 V
• Valve Type: Direct-Acting
• Function: 3-Way/2-Position, Direct Acting
• Flow Factor: 0.33 Cv
