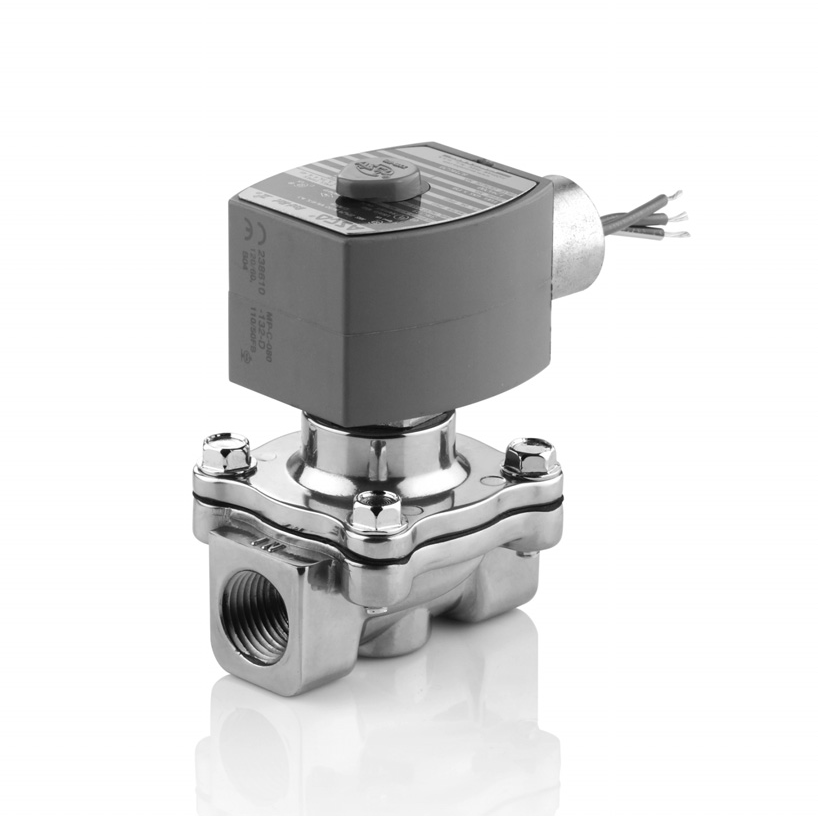

Asco 8214G030 24/60 Gas Valve 5# Max

ASCO
Brand: ASCO
SKU: 8214G030 24/60
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$240.44
$240.44
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The ASCO 8214G030 24/60 is a 3/4in 24V gas valve with a maximum pressure of 5#. This 2-way normally closed valve is part of the 8214 series and features an aluminum body and NBR seat material. It is designed for use in various mounting directions and has a gas capacity of 247,500 BTU/hr.

  • Normally closed 2-way valve
  • Aluminum body with NBR seat
  • Maximum gas pressure of 5#

Product Highlights

This ASCO gas valve is suitable for applications requiring a reliable shutoff with a compact design. It features a Nema 4X housing and can operate in ambient temperatures from -40 to 125 degrees.

Product Information

Standard Information

  • Brand: ASCO
  • Manufacturer Part Number: 8214G030 24/60
  • Country of Origin: Unknown

Technical Specifications

  • Cv: 5.1
  • Mode: Normally Closed
  • Type: 2 Way
  • Series: 8214
  • Max (Air): 5
  • Max (Gas): 5
  • Pipe Size: 3/4"
  • Coil Class: F
  • Coil Number: 238610-105-D
  • Lead Length: 18
  • Watt Rating: 17.1
  • Coil Voltage: 24/60
  • Housing Type: Nema 4X
  • Orifice Size: 3/4"
  • Shading Ring: Copper
  • Body Material: Aluminum
  • Seat Material: NBR
  • Mounting Direction: Any
  • Rebuild Kit Number: 316233
  • Inrush Current (VA): 93
  • Holding Current (VA): 40
  • Gas Capacity (BTU/hr): 247,500
  • Max Fluid Temperature: 125
  • Min Differential (PSI): 0
  • Max Ambient Temperature: 125
  • Min Ambient Temperature: -40
