Asco 8210G076 24VAC

Product Description

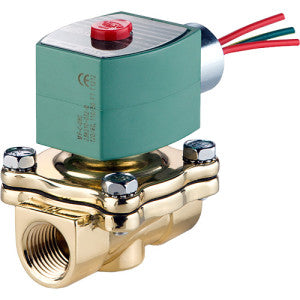

The ASCO 8210G076 24VAC is a 3/4" 2-way NPT, normally closed valve with a 5 Cv rating and a gas capacity of 295,000 BTU/HR. It is designed for pressure ranging from 0-50 PSI and features a pilot shutoff. It is suitable for use with fuel gas.

• Wide range of pressure ratings, sizes, and resilient materials for long service life and low internal leakage
• High flow capacity valves for liquid, corrosives, and air/inert gas service
• General service models for industrial air compressors, laundry, power washing, industrial water control, pumps

Product Highlights

This valve is ideal for gas safety shutoff applications, offering approvals from CSA, FM, and UL. It features a brass body and Buna N seals.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8210G076 24VAC

Technical Specifications

• Max Media Temperature: 125 °F
• Media Compatibility: Fuel Gas
• Power Supply: AC Line Power
• Type: Two Way
• Connection: NPT
• Sensor Type: Two Way
• Valve Operation: Normally Closed
• Orifice Size: 3/4 in
• Is FM: true
• Gas Capacity: 295,000 Btu/hr
• Solenoid Coil: 238610-005-D
• Solenoid Kit: 304076
• Enclosure Rating: NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
• Body Material: Brass
• Approvals: CSA,FM,UL
• Cv: 5
• Pipe Size: 3/4 in
• Wetted Materials: Brass, Buna N
• Pressure Range: 0 - 50 PSI
• Supply Voltage (Nominal): 24/60 VAC
• Function: Gas Safety Shutoff
• Seal Material: Buna N
