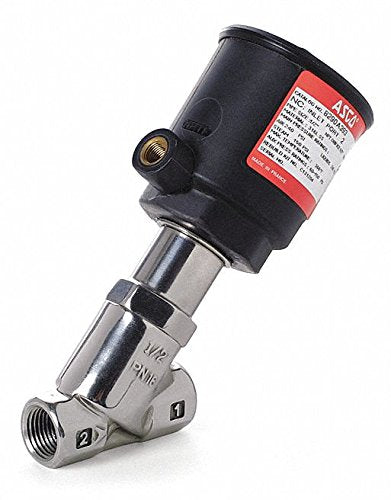

CAI - ASCO 8290A386 Angle Body Piston Valve 2-Way/2-Position Normally Closed

Product Description

The CAI - ASCO 8290A386 is an angle body piston valve designed for precise control. This valve features a two-way, two-position configuration, making it suitable for various applications.

• Normally closed valve configuration
• Compatible with air, inert gases, light slurries, oil, and water
• Constructed with durable bronze body and PTFE seals

Product Highlights

This valve operates effectively within a wide temperature range and is suitable for indoor and outdoor environments.

Product Information

Standard Information

• Manufacturer: CAI - ASCO
• Product Type: Mechanical Components

Technical Specifications

• MPN: 8290A386
• Pipe Size: 1 inch
• Max Operating Pressure Differential (Water): ninety psi
• Max Operating Pressure Differential (Steam): ninety psi
• Ambient Temperature Range: fifteen to one hundred forty degrees Fahrenheit
• Max Fluid Temperature: three hundred sixty-six degrees Fahrenheit
• Min Pilot Pressure: sixty psi
• Max Pilot Pressure: one hundred fifty psi
• Body Material: Bronze
• Seal Material: PTFE
