Asc Engineered Solutions 0390171288 7045 4x2 Ptd F/Thd E Clamp-T

Product Description

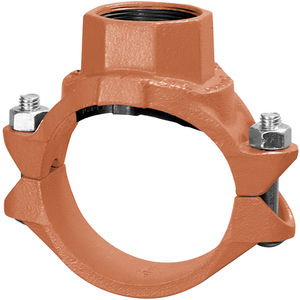

The ASC ENGINEERED SOLUTIONS 0390171288 Gruvlok Clamp-T Branch Outlet, Series FIG 7045, joins pipes in wet and dry systems. It is recommended for water service, diluted acids, alkalies solutions, and oil-free air. It has a pressure rating of 500 psi and a temperature rating of -40 to 230 deg F.

• Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
• Recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services
• Grade E EPDM green gasket

Product Highlights

The ASC Engineered Solutions Gruvlok clamp tee provides a quick and easy outlet at any location along pipe.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0390171288
• Country of Origin: Domestic

Technical Specifications

• Bolt Material: Steel
• Bolt Size: 1/2 x 2-3/4 in
• Clamp Material: Ductile Iron
• Color: Orange
• Connection Type: FNPT
• Domestic/Import: Domestic
• Finish: Rust Inhibiting Painted
• Gasket Material: Grade E EPDM
• Nominal Size: 4 x 2 in
• Pressure Rating: 500 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 7045
• Temperature Rating: -40 to 230 deg F
• Manufacturer: ASC Engineered Solutions
• Type: Clamp Pipe Tee
• Size A: 4" Clamp
• Size B: 4"
• Size C: 2"
• Overall Length: 7.500"
• Minimum Operating Temperature: -20 F
• Standards: UL / ULC / FM
• Primary Use: Provides quick and easy outlet at any location along pipe
• Maximum Operating Temperature: 150 F
• Class: 150 lb
• Rust Inhibiting: Rust Inhibiting
• Fitting Type: Clamp Tee
• Temperature: -20 F - 150 F
• Specification: UL / ULC / FM
• Application: Provides quick and easy outlet at any location along pipe
• Lead Free: Yes
• Material: Ductile Iron
