Asc Engineered Solutions 0390013530 7401 3 in Ptd E Gskt Ridglok Cplg

Product Description

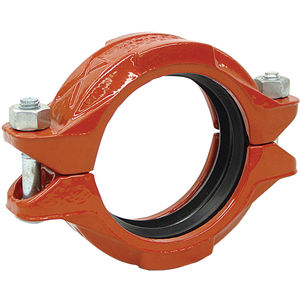

The ASC ENGINEERED SOLUTIONS 0390013530 Gruvlok® Pipe Coupling, Series FIG 7401, is designed to join pipes in both wet and dry systems. It is suitable for grooved-end pipes. The coupling has a rust-inhibiting painted finish.

• Joins pipes in both wet and dry systems
• Features zinc electroplated bolts
• cULus Listed, FM Approved, LPCB, NSF/ANSI 61, UPC Listed, VdS Approved

Product Highlights

The ASC Engineered Solutions 0390013530 coupling is a grooved pipe coupling with a 3 inch nominal size, grooved end style, and a pressure rating of 750 psi.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0390013530

Technical Specifications

• Color: Orange
• Domestic/Import: Domestic
• End Style: Grooved
• Finish: Rust Inhibiting Painted
• Fitting/Connector Type: Coupling
• Material: Ductile Iron
• Nominal Size: 3 in
• Pressure Rating: 750 psi
• Series: FIG 7401
• Temperature Rating: -40 to 250 deg F
• Manufacturer: ASC Engineered Solutions
• Type: RIGID, BOLTED, STRAIGHT TYPE
• Standard: UL (CANADA AND US), FM, NSF/ANSI 61G, VDS, LPCB, ASME B31 APPLICABLE STANDARD
• Material Specification: ASTM A536 GRADE 65-45-12
• End Connection: GROOVED X GROOVED
• Gasket Details: STYLE C GRADE E GREEN ASTM D2000 EPDM
• Brand: RIGIDLOK[R]
• Maximum End Load: 7216 POUND
• Bolt Size: 1/2 INCH DIAMETER X 3 INCH LENGTH
• Model: 7401
