Asc Engineered Solutions 0318903689 3/4 Steel Countersunk Plug (3/4 in)

Product Description

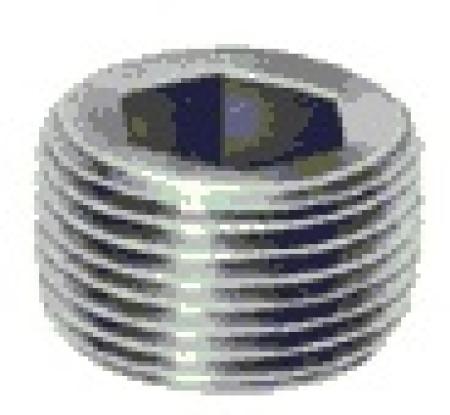

Asc Engineered Solutions 0318903689 is a 3/4 in steel countersunk pipe plug with MNPT threads and a hex head, rated 2000 psi (300 lb class) and a temperature range of -20 to 150 deg F. Made from merchant steel with a black oxide finish, it complies with ASME B16.3 and carries cULus, FM, and NSF/ANSI 61 approvals. Intended for sealing pipe ends and general piping maintenance.

• 3/4 in nominal size with MNPT end style and hex head for threaded installation.
• Merchant steel construction with black oxide finish; pressure rating 2000 psi (300 lb class).
• Temperature range -20 to 150 deg F; meets ASME B16.3 and is cULus listed, FM approved, NSF/ANSI 61.

Product Highlights

3/4 in MNPT countersunk hex plug; merchant steel; 2000 psi; -20 to 150 deg F; ASME B16.3, cULus, FM, NSF/ANSI 61.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0318903689
• Country of Origin: Domestic

Technical Specifications

• Manufacturer: ASC Engineered Solutions
• Manufacturer Part Number: 0318903689
• Fitting Type: Plug
• End Style: MNPT
• Size: 3/4 in nominal
• Material: Merchant Steel
• Finish: Black Oxide
• Head Type: Hex Head
• Pressure Class: 300 lb
• Pressure Rating: 2000 psi
• Temperature Rating: -20 to 150 deg F
• Standards/Approvals: ASME B16.3; cULus listed; FM approved; NSF/ANSI 61
