Asc Engineered Solutions 0310511209 1-1/4 AAR MI 300# 45 Ell

Product Description

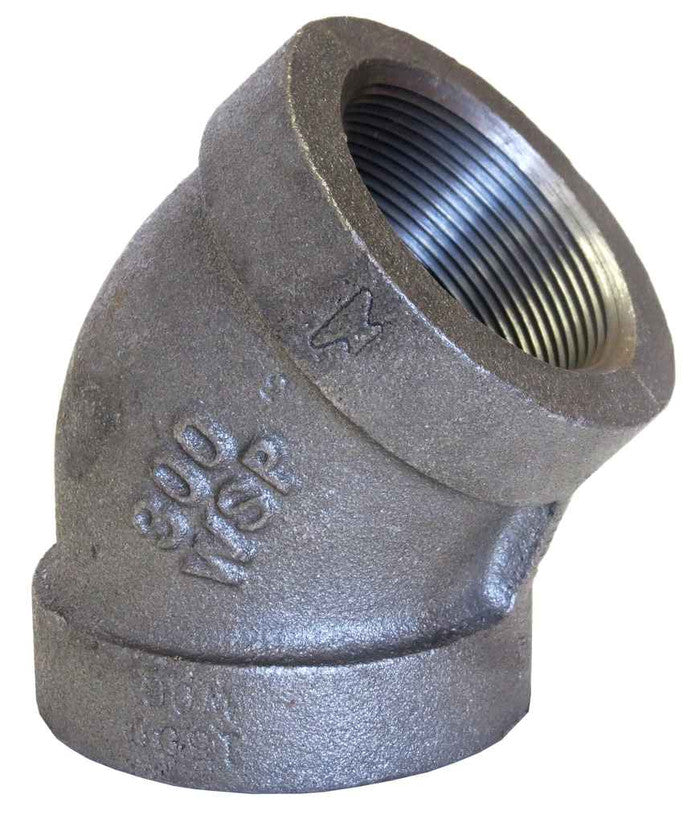

The ASC ENGINEERED SOLUTIONS 0310511209 is an Anvil Pipe Elbow, FIG 1162 Series, used to hold two different pipe parts together and direct gas and liquid movement. It has a 45 deg Elbow, 1-1/4 in Nominal, FNPT, SCH 80/XS, SCH 80/XH, 300 lb, 1500 psi. Made of Malleable Iron, Black Oxide, -20 to 150 deg F.

• Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
• ASME B16.3/B1.20.1
• ASTM A197

Product Highlights

The ASC ENGINEERED SOLUTIONS 0310511209 pipe elbow is suitable for plumbing applications.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310511209
• Country of Origin: Domestic

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 45 deg Elbow
• Material: Malleable Iron
• Nominal Size: 1-1/4 in
• Pressure Class: 300 lb
• Pressure Rating: 1500 psi
• Schedule Rating: SCH 80/XS, SCH 80/XH
• Series: FIG 1162
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• SKU: 310511209
• UPC: 690291027055
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 1.25
• Size 2: 1.25
• Strength: XH
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Type: 45 Elbow
• Product Finish: Black
• Product Material: Malleable Iron
