Asc Engineered Solutions 0310007802 3/4 x 1/2 Blk Mi 150# 90 Ell

Product Description

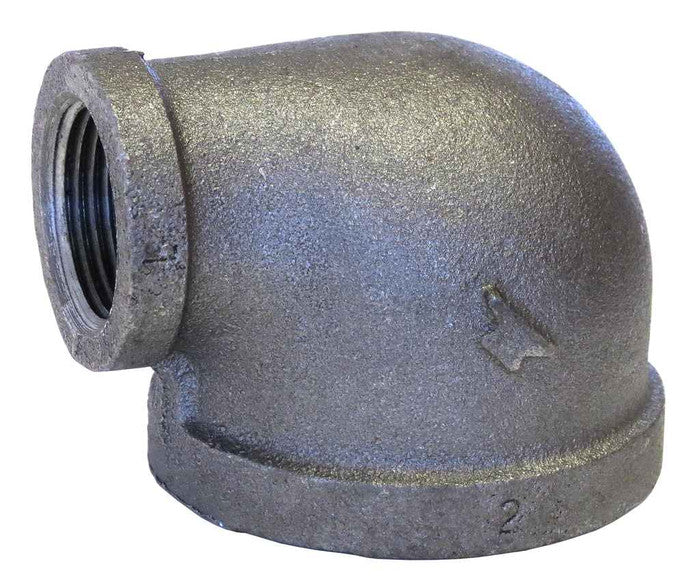

The ASC ENGINEERED SOLUTIONS 0310007802 is a 90-degree reducing elbow designed to connect different pipe sizes. This malleable iron pipe fitting holds two different pipe parts together and directs gas and liquid movement. It has a black oxide finish and is suitable for plumbing applications.

• Connects different pipe sizes at a 90-degree angle.
• Constructed from durable malleable iron.
• Suitable for gas and liquid movement.

Product Highlights

This 90-degree elbow fitting is made from malleable iron with a black oxide finish. It connects 3/4-inch and 1/2-inch pipes and is rated to 300 psi.

Product Information

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 0310007802

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 3/4 x 1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: FIG 1101R
• Temperature Rating: -20 to 150 deg F
• Manufacturer: ASC Engineered Solutions
• Dimensions Specification: ASME B16.3
• End Conn Size 1: FPT
• End Conn Size 2: FPT
• Material Specification: ASTM A-197
• Pressure Rating Specification: ASME B16.3
• Size 1: 3/4
• Size 2: 1/2
• Strength: STD
• Thread Specification: ASME B1.20.1
• Ul Fm: Yes
• Department: Plumbing
• Product Group: Pipe Fittings
• Product Subgroup: Elbows
• Product Type: 90 Elbow
• Product Finish: Black
• Product Material: Malleable Iron
