Arrowhead Brass & Plumbing 248lf washing machine valve

Product Description

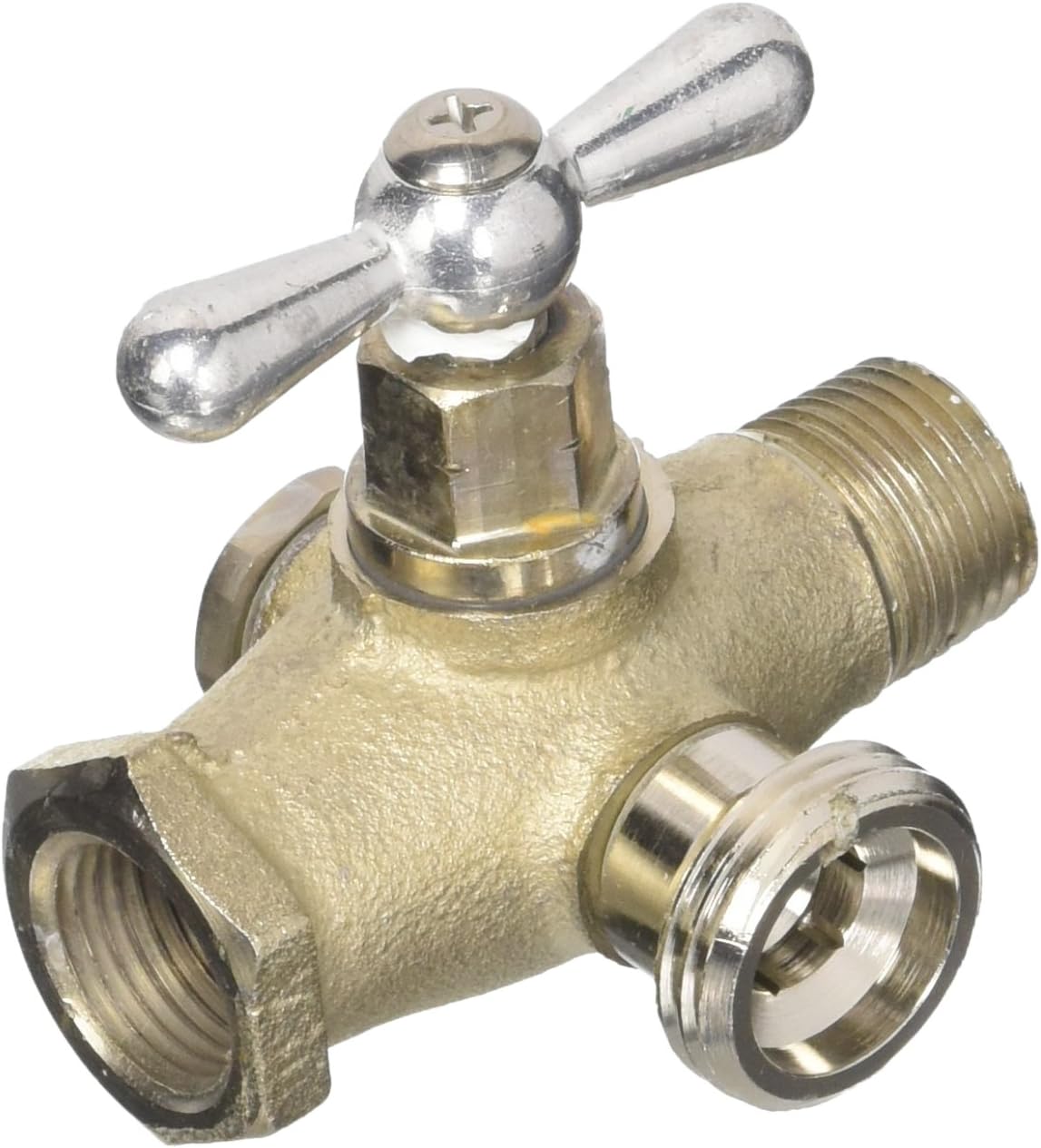

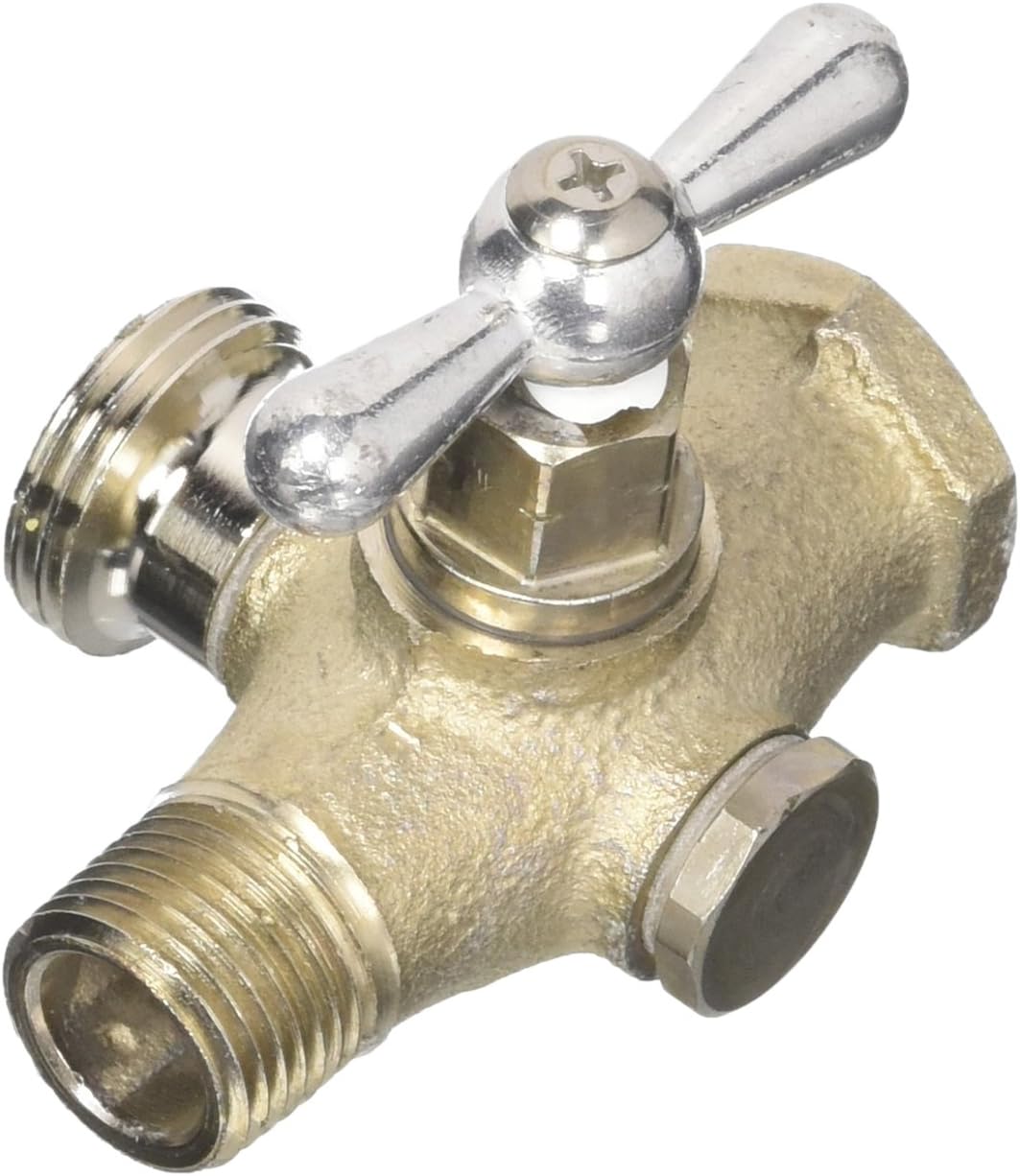

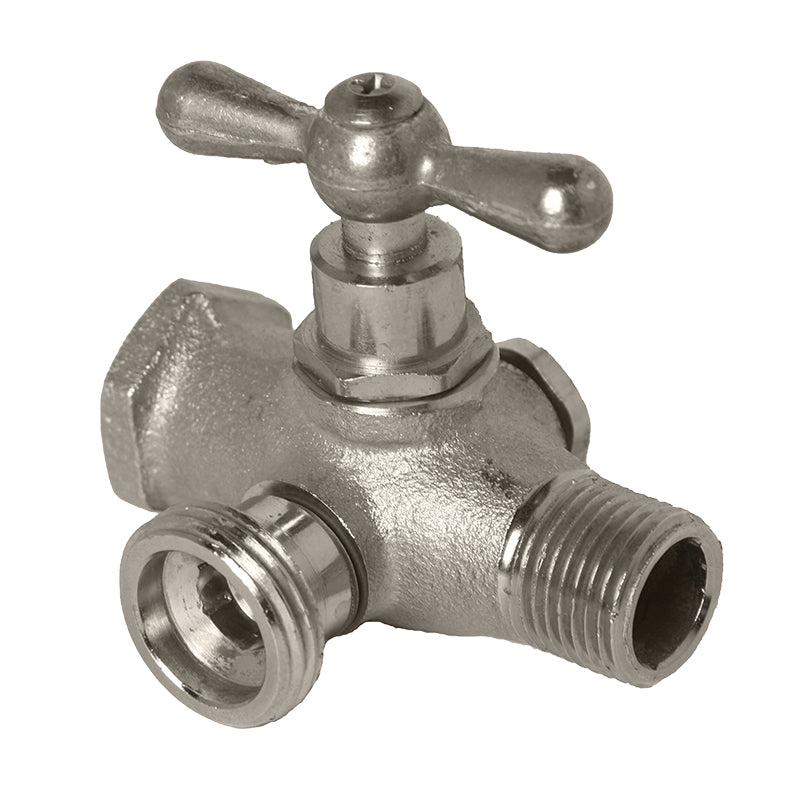

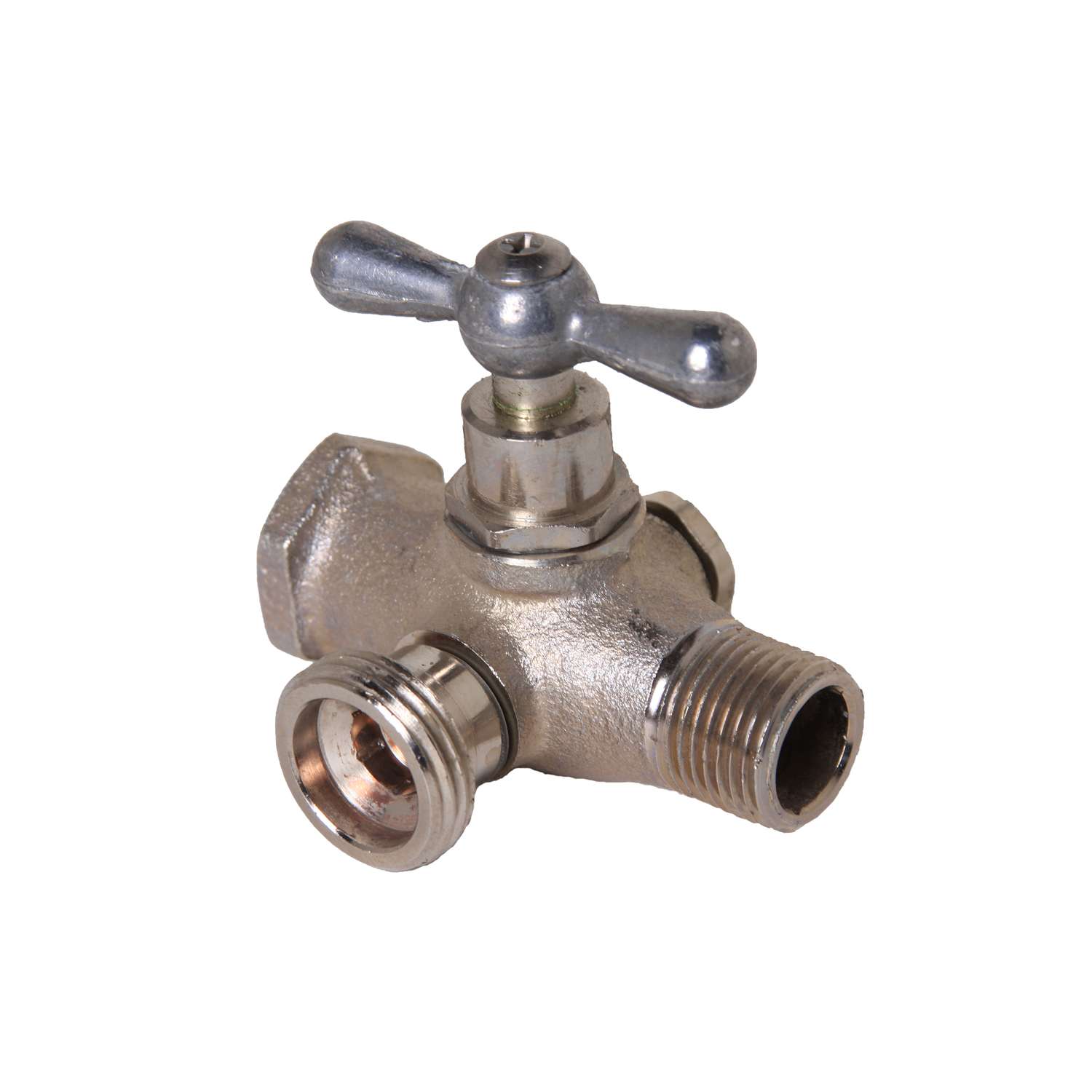

The ARROWHEAD BRASS & PLUMBING 248LF washing machine valve has a ½” Female Iron Pipe (FIP) connection with a reversible ¾” MHT bypass. It features Arrowhead Brass’s exclusive O-ring bonnet and stem design. This product is highly durable and easy to use.

• Made from a heavy-duty, lead-free bronze alloy
• Exclusive O-ring bonnet and stem design (no packaging nut to tighten)
• Easy installation and easy handling

Product Highlights

This Arrowhead Brass washing machine valve is nickel-plated.

Product Information

Standard Information

• Brand: ARROWHEAD BRASS & PLUMBING
• Manufacturer Part Number: 248LF
• Country of Origin: US

Technical Specifications

• Material: Brass
• Exterior Finish: Brass
• Number of Ports: 1
• Batteries Included?: No
• Batteries Required?: No
• Included Components: Faucet-valves
• Inlet Connection: 1/2” FIP
• Outlet Connection: 3/4” male hose thread
• Reversible bypass: 3/4” male hose thread and plug
• Finish: Nickel-plated
• Lead-free certification: NSF/ANSI 372 (by IAPMO)
• Max pressure: 125 PSI
• Max temperature: 180 oF
• Inlet Connection Size: 0.5 Inches
• Inlet Connection Type: female
• Outlet Connection Type: 3/4 inch hose connection
• Outlet Connection Size: 0.75 Inches
• Specification Met: Possibly meets US standards
• Thread Type: NPT
• Connector Type: Hose
• Thread Size: 1/2 inch
• Valve Type: bypass
• Material Type: Brass
