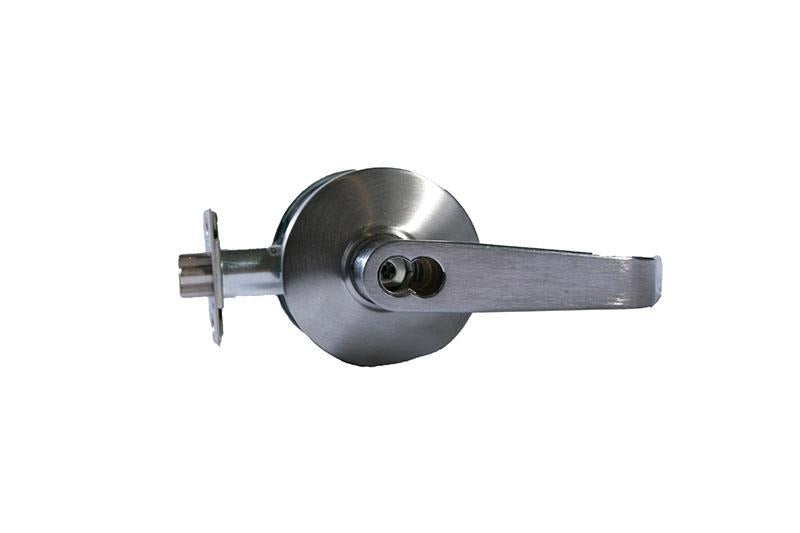

Arrow QL82-SR-26D-IC Storeroom Lever Lock Grade 1 (6 per Case)

Brand: ARROW
SKU: QL82-SR-26D-IC
Availability: In Stock

Ships same day if ordered by 12 pm
$186.07
$186.07
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Arrow QL82-SR-26D-IC is a Grade 1 storeroom cylindrical lever lock designed for commercial installations. The lock features a storeroom (82/F86) function where the outside lever remains rigid and entry is gained by key in the outside lever or by turning the inside lever. It fits standard 2-1/8" bore doors with a 2-3/4" backset and accepts SFIC cylinders (shipped less core).

  • Grade 1 commercial cylindrical lock with storeroom (F86) function; outside lever remains locked
  • SFIC prep (less core); fits 1-3/8" to 1-3/4" doors with 2-3/4" backset and 1/2" latch throw
  • UL 10C listed, 3-hour fire rated (A), ANSI/BHMA A156.2 Series 4000 compliant

Product Highlights

Grade 1 storeroom cylindrical lever lock, SFIC prep less core, 2-3/4" backset, fits 1-3/8"–1-3/4" doors, UL 10C 3-hour fire rated

Product Information

Standard Information

  • Brand: ARROW
  • Manufacturer Part Number: QL82-SR-26D-IC
  • Country of Origin: South Korea
Technical Specifications
Brand
Arrow
Manufacturer Part Number
QL82-SR-26D-IC
Product Type
Cylindrical Lock / Leverset
Function
Storeroom (82) — outside lever always rigid; latchbolt operated by key in outside lever or by turning inside lever
ANSI Function
F86
Grade
Grade 1 (ANSI/BHMA A156.2 Series 4000)
Series
QL Series
Cylinder Type
SFIC prep (ships less core)
Number of Pins (SFIC)
6 or 7
Backset
2-3/4" (69.85 mm)
Door Bore
Standard 2-1/8" (54 mm)
Door Thickness Range
1-3/8" (34.93 mm) to 1-3/4" (44.45 mm)
Std. Latch Type
Dead latch (guarded) / Q71 deadlatch
Latch Throw
1/2" (12.7 mm)
Latch Bore Diameter
1"
Latch Front/Faceplate
1-1/8" x 2-1/4" (for 2-3/4" backset)
Std. Strike
306 ANSI strike, 4-7/8" x 1-1/4"
Lever Design
Sierra straight return lever (Sierra-SR)
Lever Material/Trim
Pressure cast zinc lever; wrought brass rose
Rose Diameter
3-11/32" (84.8 mm)
Total Projection
2-17/32" (64.5 mm) from face of door
Handing
Non-handed
Finish
Specified (first-source)
UL Listing
UL 10C listed
Fire Rating
3 hours (A)
Certifications
ANSI/BHMA A156.2 Series 4000; UL listed; CUL listed
ADA Compliance
Yes
Origin
South Korea
Fasteners
Wood and machine screws; combination screws
Installation
Commercial, two-screw lockset installation
Notes
Freewheeling lever for abuse resistance; accepts SFIC interchangeable core (sold less core)
