Arrow Lock Ed910-630-36 Rim Exit Device 36 inches replacement mpn

Product Description

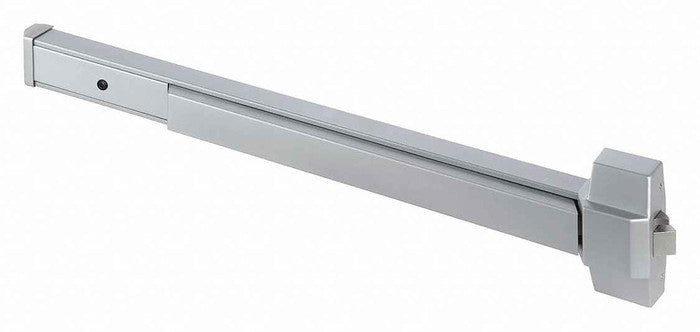

The ARROW LOCK ED910-630-36 is a rim exit device with hex key dogging, designed for 36" doors. It is BHMA Grade 1 Certified and suitable for both metal and wood doors. The device is designed to replace or upgrade existing exit devices and comes with an extended 10-year warranty.

• Field Reversible Handing
• Exit Only Function
• Fits 36" Door Width
• Hex Key Dogging
• Push Bar Style
• BHMA Grade 1 Certified

Product Highlights

This rim exit device is ideal for commercial applications, offering both security and ease of use. It is easy to install and built to last.

Product Information

Standard Information

• Brand: ARROW LOCK
• Manufacturer Part Number: ED910-630-36
• Country of Origin: United States

Technical Specifications

• Alternate Part Number-1: 154533
• Handing: Field Reversible
• Function: Exit Only
• Door Width: 36"
• Options: Machine Screws, Wood Screws
• Door Type: Metal, Wood
• exit device type: Rim Exit
• Dogging: Hex Key
• Bar Style: Push Bar
• Height: 2.76
• Length: 34.06
• Width: 5.51
• Brand: ARROW LOCK
• MPN: ED910-36-630
• UPC: Does Not Apply
• Country of Origin: United States
• Chassis: Stamped steel materials
• Chassis cover: Cast zinc
• Door Types: Fits 1-3/4" doors standard
• Stile: 4-1/2" minimum
• Mounting: Supplied with wood and machine screws
• Latchbolt: Stainless steel
• Rail Assembly: Powder Coated Steel, stainless steel optional
• Strike: ES90 Strike
• ANSI/BHMA Standard: Certified ANSI/BHMA A156.3, Grade 1
• Usage: Light Duty
• Fire-Rating: Non-Fire-Rated
• Stile Type: Wide (Standard)
• Minimum Stile Width: 4-1/2"
• Dogging Feature: Half turn hex dogging standard
• Trim: None - Exit Only (Outside Trim Sold Separately)
• SKU: ED910-36 689
• Subcategory: Rim Exit Devices
• Series: ED910 Series
• Product Type: Exit Devices - Rim
• ADA Compliant: No
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Devices - Rim
• ANSI/BHMA: ANSI/BHMA A156.3, Grade 1, UL and CUL Listed, Complies NFPA 101 Safety Code
• Commercial/Residential: Commercial
• Wood Door Compatible: No
• Product Model: ED910
• Door Thickness Range: 1-3/4"
• Product Size: 36"
• Fire Rating: No
• Product Category: Exit Devices and Trim
• Product Substrate: Steel
• Department: Door Hardware
