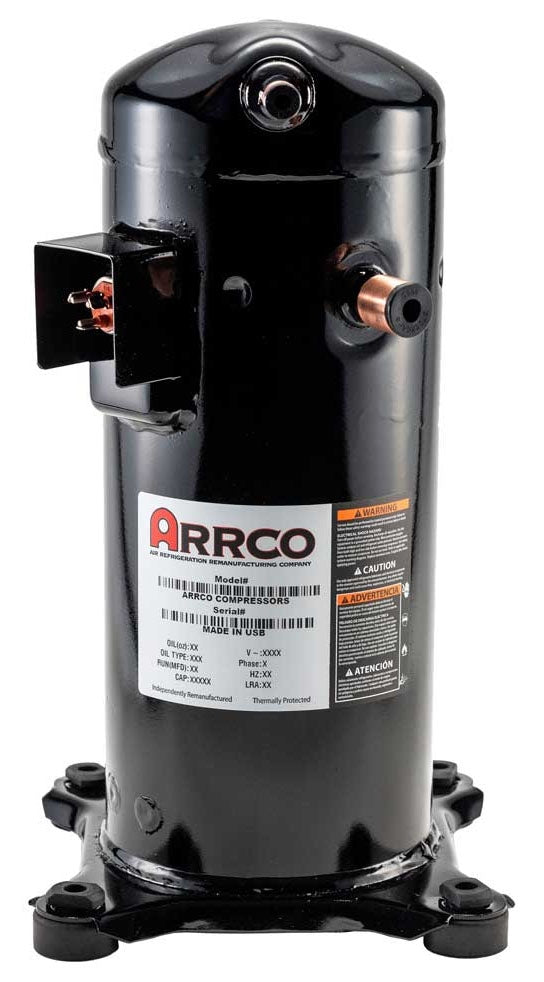

ARRCO AR72KP-HF5 Scroll Compressor 72000 BTU/Hour

Product Description

The ARRCO AR72KP-HF5 is a scroll compressor tailored for HVAC systems. This unit is designed to operate efficiently with R-22 and R-407C refrigerants. It supports a nominal capacity of 72000 BTU/hr and is suitable for installations with 208/230 VAC 60 Hz 3-Phase power supply.

• Nominal capacity of 72000 BTU/hr
• 20/230 VAC 60 Hz 3-Phase power compatible
• Includes 7/8 inch suction fitting and 1/2 inch discharge fitting

Product Highlights

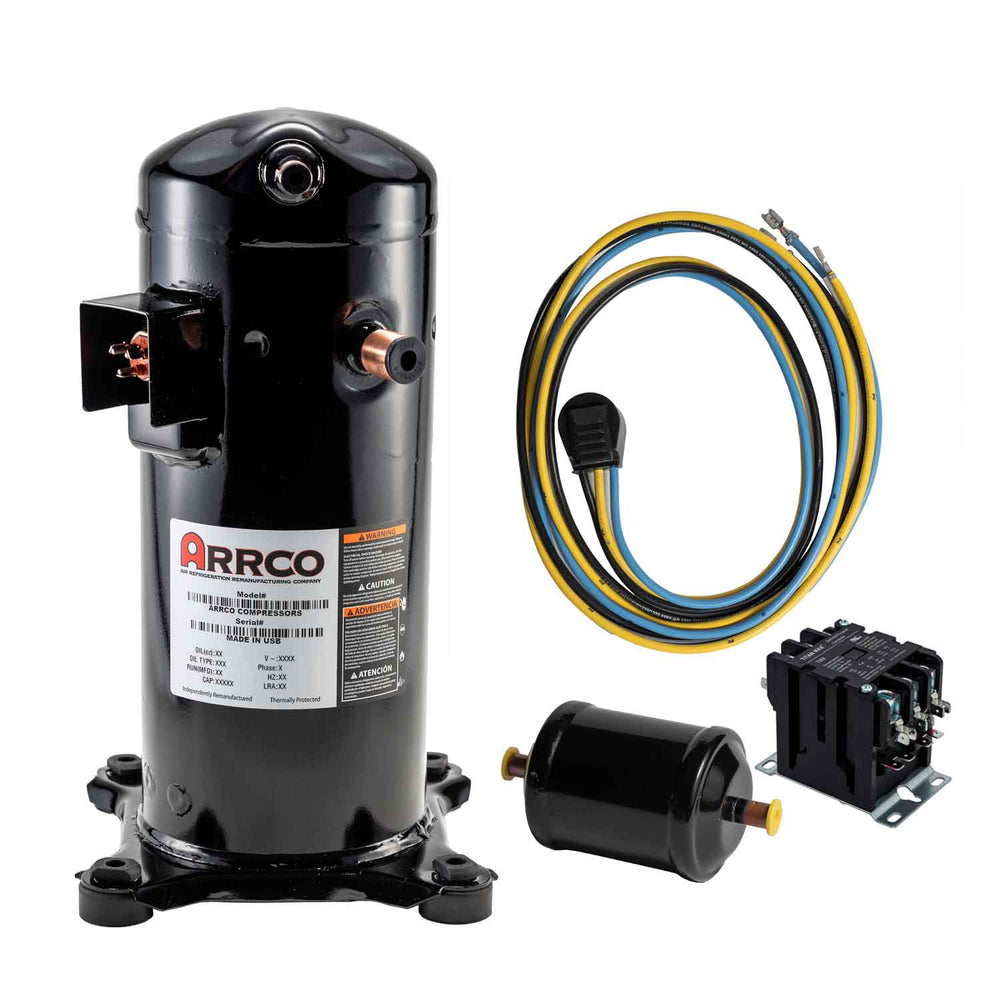

The ARRCO AR72KP-HF5 is built with a thermally protected motor, enhancing durability for HVAC applications. Its construction includes important features such as a capacitor and a filter drier for efficient operation. The compressor is complete with a 5-foot wiring harness, simplifying installation.

Product Information

Standard Information

• Brand: ARRCO
• MPN: AR72KP-HF5

Technical Specifications

• Nominal Capacity: 72000 BTU/Hour
• Voltage Rating: 208/230 Volt AC 60 Hertz 3-Phase
• Refrigerant Type: R-22/R-407C
• Motor Type: Thermally Protected
• Application: HVAC System
• Suction Fitting Size: 7/8 Inch
• Discharge Fitting Size: 1/2 Inch
• Condition: New
