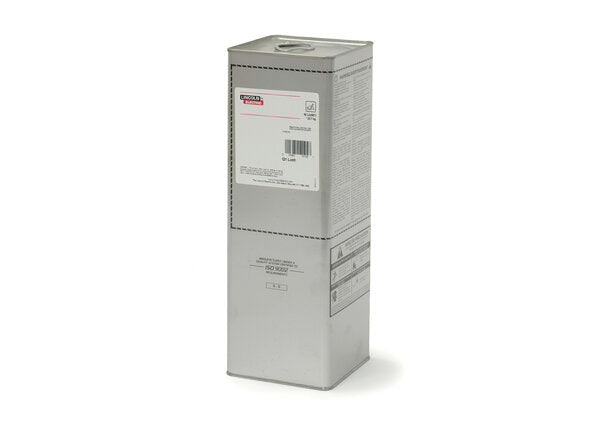

ARC 80 Pipeliner 80 Welding Rods

Product Description

The ARC 80 Pipeliner with MPN 80 is suitable for vertical down welding in cross-country and in-plant pipe applications. It enhances productivity in challenging welding positions, ensuring deep penetration and a clear weld puddle. The product complies with NACE MR0175 standards for sour gas, making it a reliable choice for demanding environments.

• High productivity for vertical down and out-of-position welding
• Strong welds due to deep penetration
• Visible weld puddle ensuring quality

Product Highlights

This product is ideal for pipe welding, providing excellent results even in difficult positions.

Product Information

Standard Information

• Classification: E8010-G, E8010-P1
• AWS: AWS A5.5

Technical Specifications

• Yield Strength @ 0.2% Offset MPa (ksi): 460 (67) min.
• Tensile Strength MPa (ksi): 550 (80) min.
• Elongation %: 19 min.
• Charpy V-Notch J (ft-lbs) @ -30°C (-20°F): 27 (20) min.
• Hardness Rockwell B: 86-98
• %B: 0.20 max.
• %C: 0.30 max.
• %Cr: 1.20 max.
