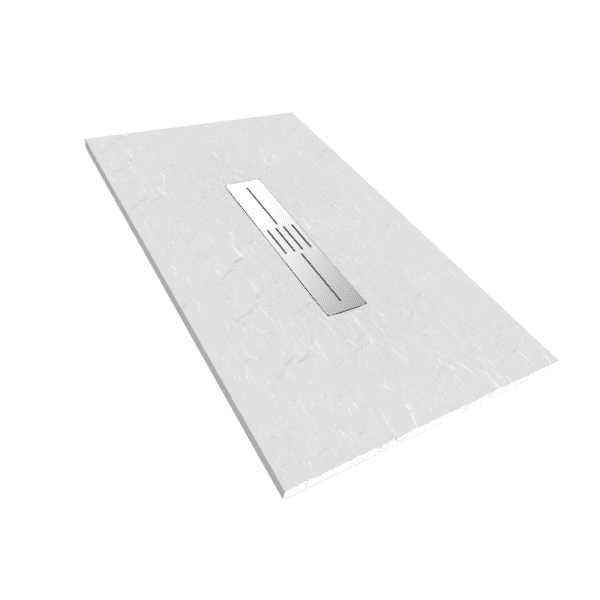

Arc 23977-WH Fastdek Linear Shower Base 59” x 35 ½”

Product Description

The ARC 23977-WH FastDEK Linear shower base is constructed from compression molded glass-fiber reinforced plastic (GRP). It supports a maximum capacity of 550lbs and features a stone-effect textured surface for improved drainage and slip-resistance. The base includes a stainless-steel linear drain cover. At only 1 inch deep, it can be installed above or within the floor for low or level access.

• Stainless-steel art deco inspired central linear drain cover
• Made from compression mold glass-fiber reinforced plastic (GRP) for strength
• Stone-effect textured surface finish aids slip resistance (no need to tile)

Product Highlights

Durable GRP construction, slip-resistant surface, and versatile installation options make this shower base ideal for various accessibility needs.

Product Information

Standard Information

• Brand: ARC
• Manufacturer Part Number: 23977-WH

Technical Specifications

• Made From: Compression molded glass-fiber reinforced plastic (GRP) for reliable strength
• Max Capacity: 550lbs max. capacity when installed on 16″ o.c. joist systems, ideal for wheelchair users
• Thickness: 1” thick across base and along perimeter
• Installation: Can be installed above the floor for low-level access, or recessed into it for complete barrier free access to the shower
• Design: Grid design on base underside ensures rigidity while being lightweight (approx. 45lbs)
• Install On: Wooden joists (no need to notch, lower or alter joists), sub-floor, or concrete
• Drain Cover: Drain concealed with stainless-steel, art deco inspired linear drain cover
• Drain Hole Diameter: 3” drain hole diameter
• Compatibility: Compatible with standard drain connector
• Gradient Planes: 4 pre-sloped gradient planes direct water flow towards drain
• Gradient: 1% per foot or greater gradient (varies due to length of pitch)
• Surface Texture: Contemporary, white stone-effect surface texture offers superior slip-resistance (no need to tile)
