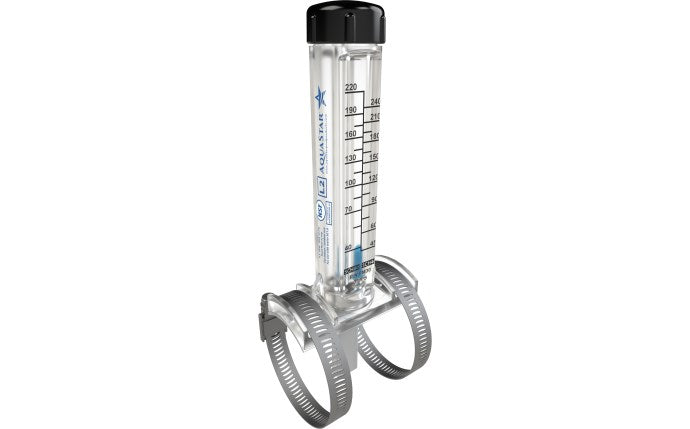

Aquastar Pool Products FM30 FlowStar Flow Meter Assembly (3 in pipe)

Product Description

The AquaStar Pool Products FM30 is a FlowStar flow meter assembly designed to measure flow in 3 in PVC pool pipe. The unit uses a pitot tube design with a PVDF internal float housed in a one-piece molded acrylic body, and mounts as a saddle to existing pipe. The assembly includes clamps and a gasket and is suitable for outdoor residential pool installations.

• Pitot tube flow measurement with PVDF internal float in a one-piece molded acrylic body
• Saddle mount for existing PVC pipe; includes mounting clamps and gasket
• Compatible with 3 in Schedule 40/80 pipe, oriented for vertical installation

Product Highlights

3 in pool flow meter assembly with PVDF float, saddle mount, and included clamps and gasket

Product Information

Standard Information

• Brand: AQUASTAR POOL PRODUCTS
• Manufacturer Part Number: FM30

Technical Specifications

• Brand: AquaStar Pool Products
• MPN: FM30
• Product Name: FlowStar Flow Meter Assembly
• Pipe Size: 3 in
• Available Sizes: 1-1/2 in, 2 in, 2-1/2 in, 3 in, 4 in (Schedule 40/80)
• Compatible Pipe Schedule: Schedule 40/80
• Mounting Type: Saddle mount (vertical)
• Design: Pitot tube flow measurement
• Float Material: PVDF
• Body Material: One-piece molded acrylic
• Included Components: Mounting clamps and gasket
• Application: Pool
• Suitable For: Outdoor installations
• Each Product Weight: 2 lb
• Product Name/Number: API-56-1023
• UPC Code: 0883612999517
