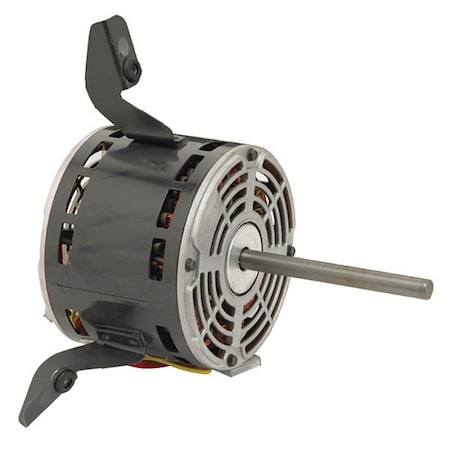

Nidec-US Motors 8052 Blower Motor 1/3 HP 208-230V 825 RPM

Product Description

The Nidec-US Motors 8052 Blower Motor is a reliable choice for heating and cooling applications. This motor operates at 208/230 volts and offers 1/3 HP power, making it suitable for various HVAC systems. It features three speeds and runs at 825 RPM, providing you with flexibility in motor speed control.

• Three-speed motor for versatile applications
• Operates at 208/230 volts
• Features a permanent split capacitor design

Product Highlights

This Nidec-US Motors blower motor is designed for efficiency and durability. It includes an automatic reset thermal overload protector and is built for continuous duty in open air over systems.

Product Information

Standard Information

• Brand: Nidec-US Motors
• MPN: 8052

Technical Specifications

• Power: 1/3 HP
• Voltage: 208/230 V
• Speed: 825 RPM
• Frame: 48
• Amperage: 1.9 A
• Frequency: 60 Hz, 1 Phase
• Bearing Type: Sleeve
• Shaft Size: 1/2 Inch Diameter x 2-1/2 Inch Length
• Capacitor: 15 uF at 370 V
• Body Diameter: 5.6 Inches
• Length: 7.3 Inches
• Mounting Type: All Angle Foot
• Enclosure Type: Open Air Over
• Insulation Type: Class B
• Service Factor: 1
• Application: Direct Drive Fans and Blowers
